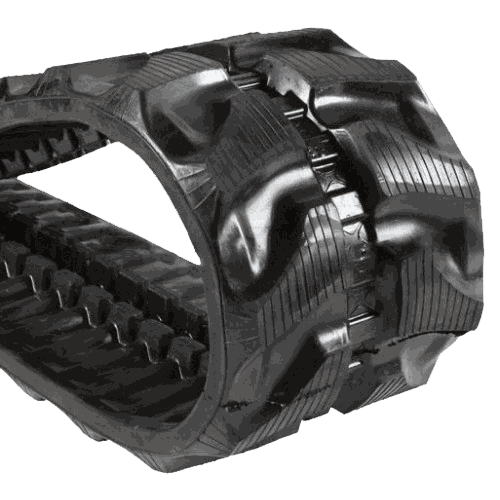

Rubber Track For Schaeff HR05, 12-Months Warranty

Rubber Track For Schaeff HR05, 12-Months Warranty

€843.95 - €843.95
€843.95
€843.95 - €843.95
€843.95
  • Product Description
  • Technical Specification
  • Warranty Details

  • Product Number: PFMLL3341

    Looking for a reliable rubber track replacement for your Schaeff HR05? - The PFMLL3341 rubber track (Size - 320x100x43) is engineered for outstanding performance and durability. Built with a high-quality rubber blend, reinforced steel carcass, and high-tensile cords, it delivers stability and long service life in The toughest working environments. Note: price is for one track. Key Features:Backed by a 12-month manufacturer warranty for rubber tracks purchased from MachineRefurb. Designed with track width 320 mm, pitch 100 mm and links 43 ensuring correct fitment and smooth travelling performance on compact equipment. Gross weight of 129.0 kg provides strong ground grip and reliable traction across soft, uneven terrain. Engineered sizing ensures correct fitment and smooth travelling performance on compatible Schaeff HR05 equipment in daily use. Continuous steel core design delivers extended durability and reduces stretching under heavy-duty operating loads in construction environments. Optimised tread profile offers reliable traction and reduced ground disturbance during everyday compact-equipment and site applications. Suitable replacement solution for Schaeff HR05 machines requiring precise rubber track dimensions and consistent travel efficiency. Compatible Machine Model: Atlas 804R, Bonne B35RP, Canelsud 2D80C, CAT MS030 /035, CAT MX30SR, CAT MX35R, CAT MXR30 /SR, CAT MXR35 /SR, CAT NS030 /035, Costruzioni Spid 28, Dalen 2D80C, Dynapac VD30 /35, Ecomeca Mait Baby Drill, Hainzl 350LSE, Hanix N300 /R, Hanix N320, Hanix N350 /R, Hanix SB115, Hanix SB15 /R, Hanix SB20, Hanix SB20 SR, Hanix SB220, Hinowa PT35G, Imef HE2.30, Imef HE230, Imef HE28, John Deere JD 25, John Deere JD 30, Komatsu PC15-1, Kubota KH26SR, Kubota KH30, Macmoter M3, Macmoter M3S, Mait Baby Drill, Mitsubishi MXR35R, Nissan N300 /R, Nissan N320 /350 /R, Nissan SB115, Nissan SB15SB, Nissan SB20R, Nissan SB20SR, Nissan SB220, Nissan SR15R, Nissan VD30, Nissan VD35, O & K RH1.3, O & K RH1.45, Oil & Steel 2714, Orteco ID270-11, Palazzani Ragnot 1.2, Palazzani TSJ28, Palazzani TSJ30, Peljob EB36, Peljob TB250R, Peljob TB300R, Peljob TL25, Peljob TL250R, Schaeff H10, Schaeff H5, Schaeff HR05, Schaeff HR10, Schaeff HR5, Schaeff HR8, Schaeff N300, Schaeff N350, SMC CX22, SMC CX220, SMC CX3T, SO CA CE J265/15, Takeuchi TB1200, Takeuchi TB250 old, Takeuchi TB250R, Takeuchi TB300, Takeuchi TB300R, Takeuchi TB350R, Takeuchi TL25, Takeuchi TZ25, Takeuchi TZ250, Takeuchi TZ26, TZ C801, Yanmar YB251, Yanmar YB281XR, Yanmar YB301, Yanmar YB351 About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.

    • Track Width:320mm
    • Pitch:100mm
    • Links:43
    • Weight: 129Kg
    • Manufacturer:Leach Lewis
  • New Grade - 24 Months Warranty from purchase is available on this product.
Frequently Asked Questions

General
Q 1. What is the delivery time?
A. Estimated delivery times are as follows:
* Ireland: 1-3 business days
* UK Mainland: 1-3 business days
* Northern Ireland: 3-7 business days
* European Union: 3-7 business days
All orders are shipped with tracking. You will receive tracking details by email once dispatched.

Q 2. Where can I learn more about choosing the right undercarriage product for my machine?
A. We've prepared a detailed guide on our Blogs & Insights Tab which explains step-by-step how to select the correct tracks and other undercarriage parts.

Technical
Q 1. What exact dimensions do I need to identify my rubber track?
A. You need Width — Pitch — Links (e.g., 300—52.5—86). Width is the track width (mm); pitch is the center-to-center distance between drive lugs; links are the total number of lugs around the track. Check the size stamped inside the track or measure it directly.

Q 2. What's inside a quality rubber track?
A. Premium tracks use continuous/spiral steel cords embedded in the rubber carcass (often with forged steel cores on CTL tracks). Spiral/continuous cords improve uniform tensile strength and reduce weak overlap points.

Q 3. What is the primary wear/failure indicators?
A. Cracks/cuts or missing rubber chunks, exposed/broken cords, frequent de-tracking, and length stretch/uneven lug wear are typical signs that a track is at end-of-life.

Q 4. Measurement tips when no size is stamped ?
A. Measure width on the outside tread, pitch between lug center's (not edges), and count all lugs/links. Convert inches ? mm if needed (1? = 25.4 mm). Provide these three numbers to match correctly.

Q 5. Do rubber tracks affect fuel efficiency or machine performance?
A. Yes, well-fitted tracks improve traction, reduce slippage, and make the machine more fuel-efficient. Worn tracks increase operating costs and reduce performance.

Q 6. What types of links are used in rubber tracks, and how do they differ?
A. Rubber tracks are built with different link (drive lug) designs, which affect how they fit the sprocket, how strong they are, and what machines they suit:
If you are still not sure which product is right for your machine, contact us on WhatsApp and our team will guide you.

K-Type Links: Wide and heavy duty, designed for larger excavators and compact track loaders where maximum strength is needed.
N-Type Links: Narrower and rounded, common on mini excavators for smoother operation and reduced vibration.
M-Type Links: A medium-width option that balances strength and smooth running, often used in mid-sized machines.
V-Type Links: V-shaped lugs that help the sprocket teeth self-center, reducing the risk of de-tracking.
A-Type Links: Reinforced for extra grip, used in high-torque applications to prevent slippage.
You can also check your machine's model and track dimensions, or simply use our Under Carriage Selection Widget Under Carriage Finder to find the right track instantly.
If you are still not sure which product is right for your machine, contact us on WhatsApp and our team will guide you.
