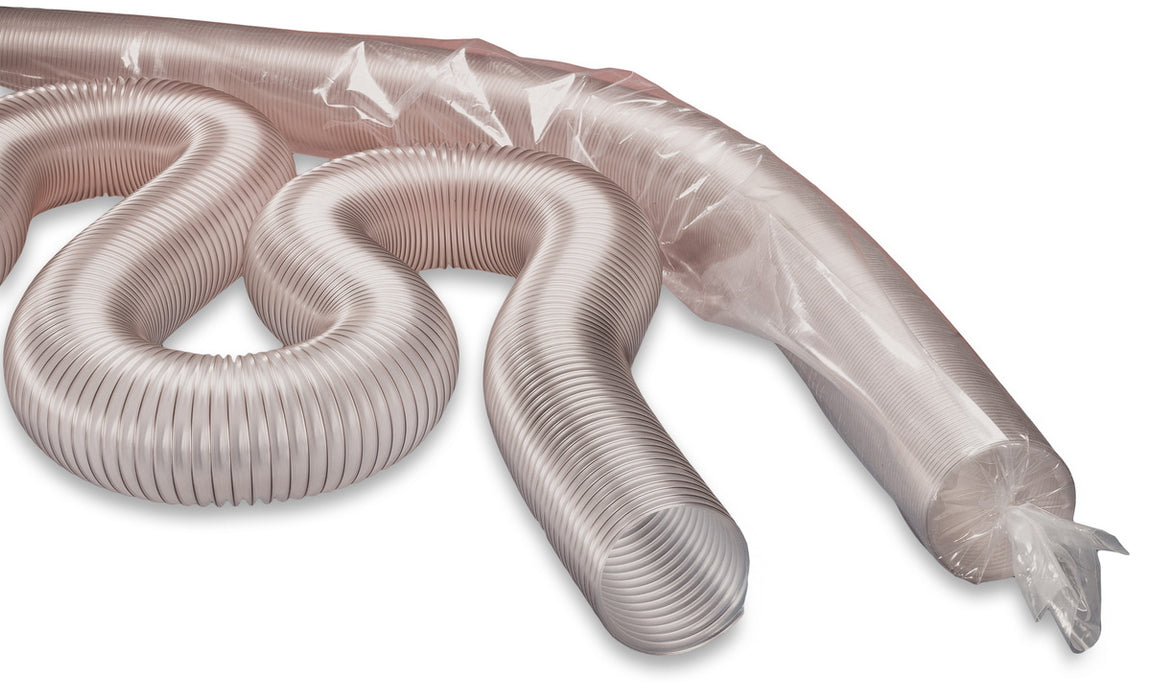

Industrial Hose, PROTAPE® PUR 301 AS (XLD) Range,160mm, 30101600000, Norres
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 30101600000
Applications flexible hose/ ducting for gases and for abrasive dust, powder, fibres extraction unit, dedusting system, filter system, oil mist extraction extraction arm chemical industry: chemical vapours, vapour return hose at loading arm, paint steam, spray mist extraction explosion hazard area animal stall, animal shed: barn ventilation bus, utility vehicle, caravan/ trailer, mobile home/ camper/ RV, boat, ship/ vessel/ marine, yacht: ventilation, heating clean room ventilation, semiconductor production machine bellows, compensators Properties super-light weight highly flexible + compressible 3:1 abrasion-resistant microbe resistant good resistance to oil, gasoline and chemicals very good low temperature flexibility flame-retardant according to: UL94-HB flame-retardant according to: DIN 4102-B1 Permanently antistatic wall: according to ISO 8031 electrical and surface resistance Technology / Technical Information / REACH Temperature Range -40°C to 90°C short time to 125°C Design PROTAPE® tape hose 1. spring steel wire integrated in wall 2. wall: permanently antistatic premium ester-polyurethane (Pre-PUR®) 3. wall thickness 0,4 mm approx.
-
- I.D. (in / mm):6,3 / 160
- outer Ø (mm):168
- Pressure DIN 26057 (50% Elongation) (bar):0.150 (0.45)
- Vacuum DIN 26057 (axially fixed) (bar):0.035 (0.12)
- Bending Radius (mm):88
- Weight (kg/m):0.81
- Minimum Quantity (m):-
- Dimensions in Stock (m):5 10 15
- Production Lengths (m):-
- Order No.:301-0160-0000
-
New Grade - 24 Months Warranty from purchase is available on this product.
