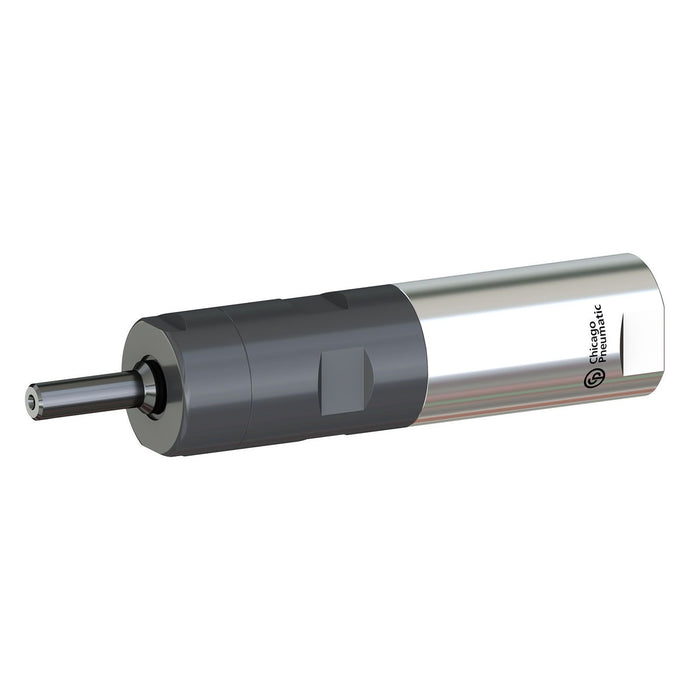

Chicago Pneumatic MR8401-700-K-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051481554
Delivering reliable, explosion-safe rotational power in demanding industrial environments, the Chicago Pneumatic MR8401-700-K-ATEX reversible vane air motor offers 630 W of continuous output with full ATEX certification, making it the trusted choice for hazardous-area applications where electrical motors simply cannot be used. Engineered to perform where safety margins are non-negotiable, this pneumatic motor combines robust vane-motor technology with a compact, durable housing designed to withstand the rigours of heavy industrial use. The MR8401-700-K-ATEX operates at a rated power of 630 W and delivers a free speed of 700 RPM, providing smooth, controllable torque across a wide range of process-driven tasks. Air consumption at load sits at 14 l/s, matched by a maximum airflow figure of 14 l/s, ensuring consistent performance when connected to an adequately sized compressed air supply. The 3/8-inch BSP air inlet thread integrates cleanly with standard pneumatic tooling networks, simplifying installation and minimising downtime during setup or maintenance. As a fully reversible air motor, it adapts effortlessly to bidirectional drive requirements, offering genuine operational flexibility on the production floor. The ATEX-rated design meets stringent European directives for use in potentially explosive atmospheres, including chemical processing facilities, offshore platforms, and paint or solvent handling areas. Whether driving conveyor systems, mixing equipment, or specialised pneumatic tool assemblies, this Chicago Pneumatic air motor delivers the power, precision, and compliance that safety-critical operations demand.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 14 l/s
- Air flow max power: 14 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 700 rpm
- Minimum starting torque: 21 Nm
- Stall torque: 32 Nm
- Torque at max power: 15.9 Nm
- Max output power: 0.6 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Reversible
- Shaft loading code: e
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 12 mm
- Weight: 1.3 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
