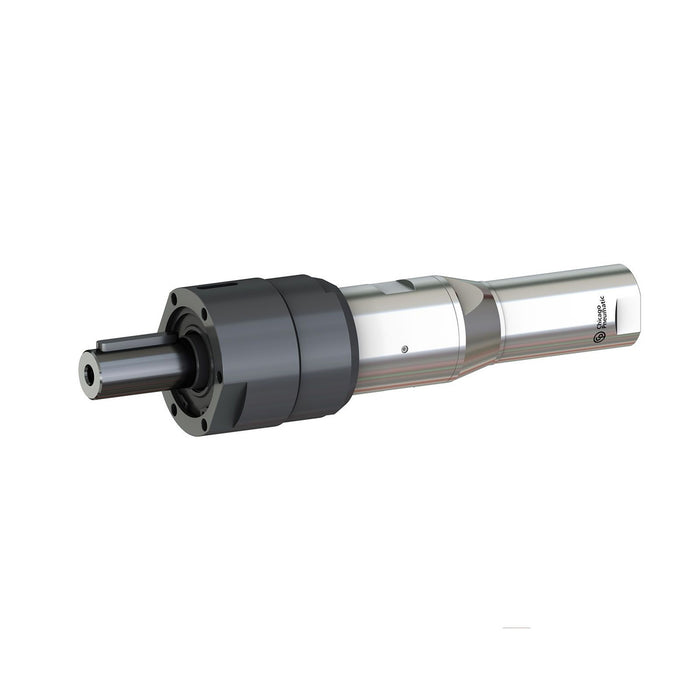

Chicago Pneumatic MR84-35-K-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479354
Engineered for demanding industrial environments where safety and reliability cannot be compromised, the Chicago Pneumatic MR84-35-K-ATEX Reversible Vane Air Motor delivers consistent 630 W of power at a controlled 35 RPM output, making it an outstanding choice for applications requiring precision torque in hazardous or potentially explosive atmospheres. The ATEX certification ensures this pneumatic motor meets the stringent European directives for equipment used in explosive environments, giving operators confidence in facilities handling flammable gases, vapours, or dust. Designed to perform under pressure, this air motor operates with an air consumption of 14 l/s at load, matched by a maximum airflow of 14 l/s to sustain peak performance throughout extended duty cycles. The 3/8-inch BSP air inlet thread ensures straightforward integration into standard pneumatic systems already running compressed air infrastructure across manufacturing floors and process plants. The reversible vane design provides bi-directional operation, expanding its versatility across a broad range of drive and actuation tasks. As a robust pneumatic motor solution, it offers the inherent benefits of air-powered technology - no electrical spark risk, consistent torque delivery, and minimal maintenance overhead compared to electric alternatives. The Chicago Pneumatic MR84-35-K-ATEX is ideally suited for conveyor drives, agitator systems, winding machinery, and any low-speed high-torque application within Zone 1 or Zone 2 classified hazardous locations across petrochemical, pharmaceutical, and food processing industries.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 14 l/s
- Air flow max power: 14 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 35 rpm
- Minimum starting torque: 388 Nm
- Stall torque: 574 Nm
- Torque at max power: 287 Nm
- Max output power: 0.6 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Reversible
- Shaft loading code: h
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 28 mm
- Weight: 4.9 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
