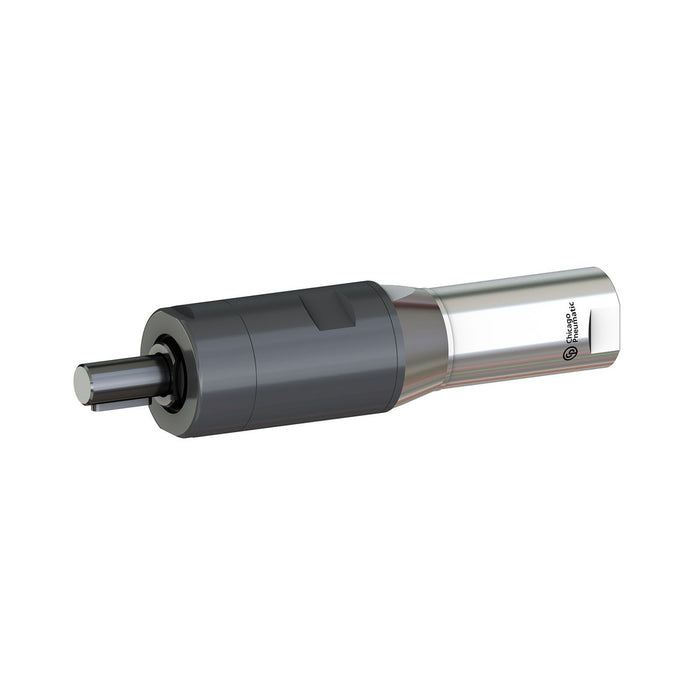

Chicago Pneumatic MR84-150-K-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479324
The Chicago Pneumatic MR84-150-K-ATEX reversible vane air motor delivers reliable, explosion-safe performance for demanding industrial environments where standard pneumatic equipment simply cannot be used. Engineered to ATEX certification standards, this robust pneumatic motor is purpose-built for hazardous locations including petrochemical plants, refineries, and other facilities where flammable atmospheres present a constant risk to personnel and equipment. Producing 630 watts of continuous power at 150 RPM, the MR84-150-K-ATEX operates with impressive efficiency on a 3/8-inch BSP air inlet, drawing an air consumption rate of 14 l/s at load - consistent with maximum air flow at full power, meaning operators get predictable, stable output across the working cycle. The reversible vane design allows smooth directional switching, giving engineers precise control over driven machinery without complex additional components. As a certified ATEX air motor, this unit eliminates the electrical ignition risks associated with conventional motors, making it the go-to solution where spark prevention is non-negotiable. Its compact vane-motor architecture translates compressed air into rotary motion with minimal vibration, reducing operator fatigue during extended use and prolonging the service life of connected tooling. This Chicago Pneumatic pneumatic motor is ideally suited for driving conveyor systems, agitators, hoists, and specialised machinery in Zone 1 and Zone 2 classified areas, offering facilities managers and maintenance engineers a dependable, safety-compliant power source they can trust in the harshest conditions.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 14 l/s
- Air flow max power: 14 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 150 rpm
- Minimum starting torque: 96 Nm
- Stall torque: 143 Nm
- Torque at max power: 72 Nm
- Max output power: 0.6 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Reversible
- Shaft loading code: g
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 2.7 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
