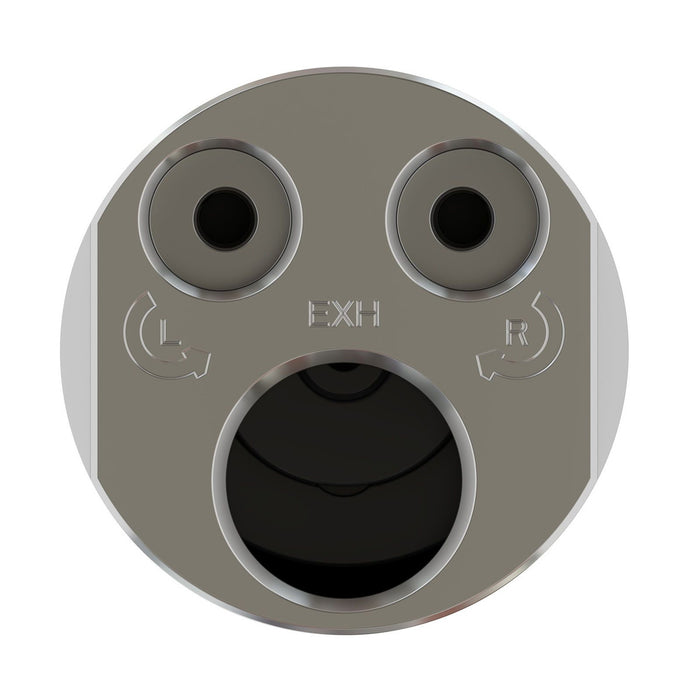

Chicago Pneumatic MR39-3800-KL-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478724
Delivering reliable, explosion-safe rotational power in demanding industrial environments, the Chicago Pneumatic MR39-3800-KL-ATEX reversible vane air motor is engineered for facilities where safety certification is non-negotiable. Rated at 250 W continuous output power with a free speed of 3,800 RPM, this compact yet capable pneumatic motor performs consistently under load, drawing an efficient 7.9 l/s air consumption to maximise productivity while keeping compressed air costs in check. Built to ATEX standards, the MR39-3800-KL-ATEX is purpose-designed for use in potentially explosive atmospheres, making it the preferred choice for oil and gas, chemical processing, and other hazardous-area applications where certified air tools are a strict operational requirement. The reversible functionality adds versatility across a broad range of machinery integration tasks, while the 1/4-inch BSP air inlet thread ensures straightforward connection to standard pneumatic supply lines without the need for adaptor fittings. The vane-driven design delivers smooth, consistent torque characteristic of quality pneumatic motor technology, offering the dependability that maintenance engineers and OEM machine builders demand from air-powered equipment. Lightweight and compact, this air motor integrates cleanly into automated machinery, conveyor systems, and bespoke pneumatic assemblies. Whether replacing a worn unit or specifying new equipment for a hazardous zone installation, the Chicago Pneumatic MR39-3800-KL-ATEX provides the certified performance and engineering precision that safety-critical industrial operations require.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 7.9 l/s
- Air flow max power: 7.9 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 3800 rpm
- Minimum starting torque: 1.6 Nm
- Stall torque: 2.4 Nm
- Torque at max power: 1.2 Nm
- Max output power: 0.3 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Reversible
- Shaft loading code: c
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 12 mm
- Weight: 0.75 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
