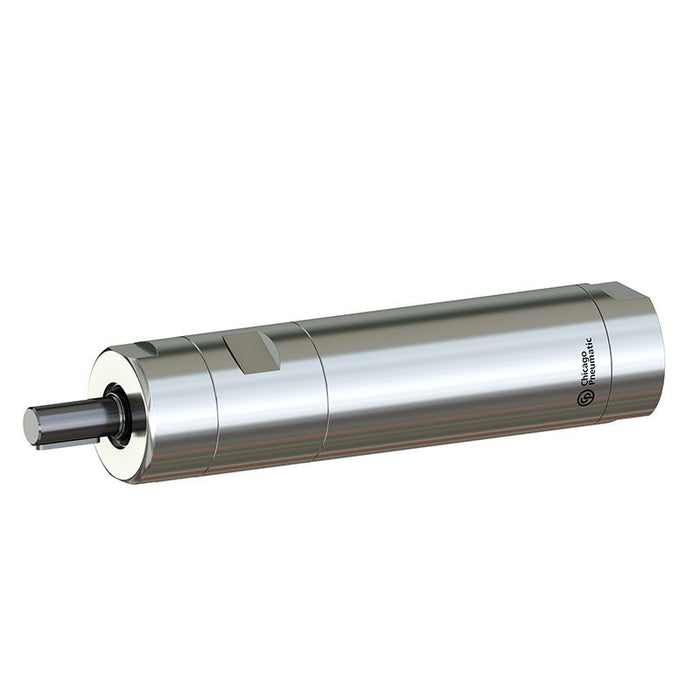

Chicago Pneumatic MR25-2850-KSL-ATEX, ATEX Reversible Stainless Steel Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478514
Delivering reliable rotational power in hazardous environments where safety cannot be compromised, the Chicago Pneumatic MR25-2850-KSL-ATEX reversible air motor offers 200 W of consistent output in a compact, explosion-proof design built for demanding industrial applications. Rated at 0.2 kW maximum output power with a free speed of 2850 rpm, this pneumatic motor is engineered to perform where electric alternatives simply cannot operate safely, making it the preferred choice for facilities handling flammable gases, vapours, or combustible dust atmospheres. The MR25-2850-KSL-ATEX carries full ATEX certification, ensuring compliance with European directives for equipment used in potentially explosive environments. With an air consumption of 5 l/s at load and matching maximum airflow at peak power, this air motor maintains efficient energy use without sacrificing torque or operational consistency. Its reversible functionality adds versatility across a broad range of process machinery, conveyors, mixing equipment, and automated assembly systems where directional flexibility is essential. As a robust pneumatic motor solution, it integrates seamlessly into existing compressed air systems, eliminating electrical ignition risks while delivering smooth, controllable power output. The rugged construction supports continuous duty cycles in harsh industrial settings, including offshore platforms, chemical processing plants, paint booths, and grain handling facilities. Engineers and maintenance professionals specifying air tools for Zone 1 and Zone 2 classified areas will find this Chicago Pneumatic unit a dependable, regulation-compliant choice for machinery requiring sustained rotational drive in safety-critical installations. Product Features: Designed with limited retention areas on the housing and double viton nose seals to prevent contamination risk Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max free speed range: 2850 rpm
- Max output power: 0.2 kW
- Air consumption at load: 5 l/s
- Air flow max power: 5 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Minimum starting torque: 1.4 Nm
- Stall torque: 2.2 Nm
- Torque at max power: 1.1 Nm
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Stainless steel
- Motor Lubrication free: Yes
- Rotation drive: Reversible
- Shaft loading code: b
- Spindle type: Keyed shaft
- Starting system: None
- Index of protection (IP code): IP69,IP68,IP66
- Output Spindle size: 10 mm
- Weight: 0.63 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
