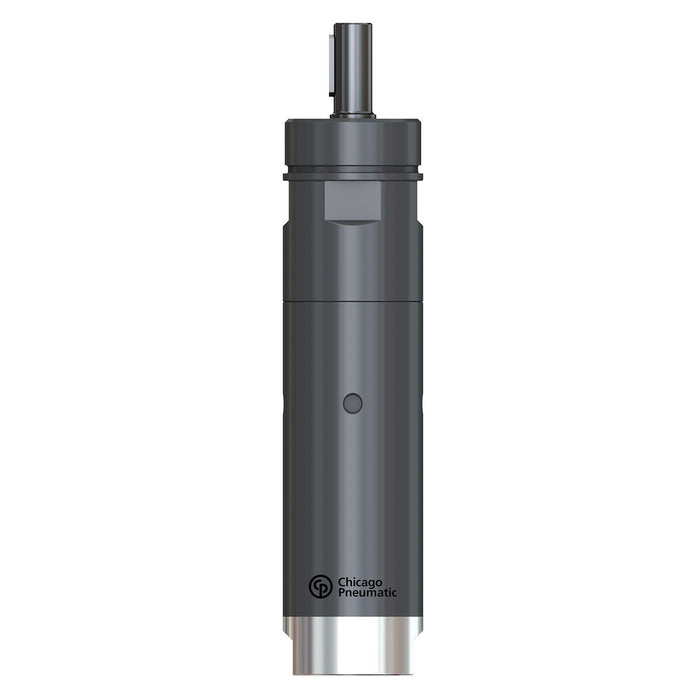

Chicago Pneumatic MR25-2100-KL-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478384
Delivering reliable, explosion-safe rotary power in the most demanding industrial environments, the Chicago Pneumatic MR25-2100-KL-ATEX reversible vane air motor offers 160 W of consistent output with a maximum speed of 2100 RPM, making it an exceptional choice where precision and safety cannot be compromised. Engineered to meet ATEX certification standards, this pneumatic motor is purpose-built for use in potentially explosive atmospheres, including petrochemical facilities, refineries, and other hazardous zone applications where conventional electric motors simply cannot be deployed. The MR25-2100-KL-ATEX draws on proven vane motor technology to deliver smooth, controllable torque through a compact and robust design. With an air consumption of 5 l/s at load and a 1/8-inch BSP inlet thread, integration into existing pneumatic systems is straightforward, minimising installation complexity and downtime. The reversible operation adds further versatility, allowing the air motor to drive equipment in both rotational directions without additional modification. As a genuine Chicago Pneumatic air motor, it benefits from the brand's decades of engineering expertise in pneumatic tools and air-powered solutions, ensuring long service life even under continuous industrial use. Whether powering conveyor systems, agitators, hoists, or specialised process machinery in classified hazardous locations, this pneumatic motor provides the dependable, spark-free performance that safety-critical operations demand from a world-class manufacturer.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5 l/s
- Air flow max power: 5 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 2100 rpm
- Minimum starting torque: 1.9 Nm
- Stall torque: 2.8 Nm
- Torque at max power: 1.4 Nm
- Max output power: 0.2 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Reversible
- Shaft loading code: b
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 10 mm
- Weight: 0.55 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
