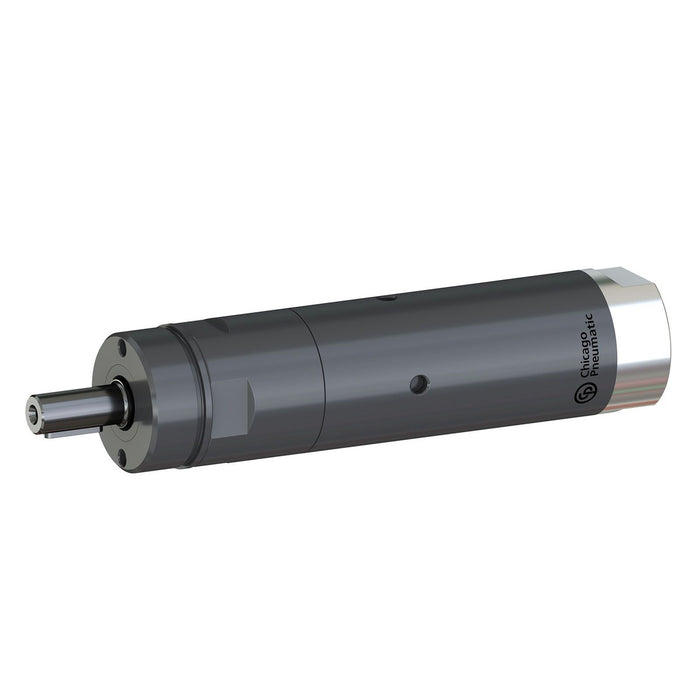

Chicago Pneumatic MR25-100-KL-ATEX, ATEX Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051481324
Designed for hazardous environments where safety and performance cannot be compromised, the Chicago Pneumatic MR25-100-KL-ATEX reversible vane air motor delivers 160 W of reliable output power in a compact, lightweight package weighing just 0.95 kg. This ATEX-certified pneumatic motor meets the stringent requirements for use in explosive atmospheres, making it a trusted choice for industries where ignition risks demand certified equipment without sacrificing operational efficiency. The MR25-100-KL-ATEX features a 10 mm output spindle and produces a torque at maximum power of 9 Nm, providing smooth, consistent rotational force suitable for a wide range of driven applications. As a vane-type air motor, it benefits from the inherent simplicity and durability that pneumatic motor technology is known for - no overheating, no electrical hazards, and straightforward integration into existing compressed air systems. Its reversible operation adds versatility, allowing engineers and maintenance professionals to adapt the motor to both clockwise and counterclockwise drive requirements without additional components. Compact enough to fit into space-restricted assemblies yet robust enough for demanding industrial cycles, this air motor is well suited to driving conveyors, mixers, agitators, and small machinery in oil and gas, chemical processing, pharmaceutical, and offshore environments. For facilities seeking a dependable ATEX-rated pneumatic motor that combines certified safety, practical torque output, and ease of installation, this Chicago Pneumatic unit is an outstanding solution.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Output Spindle size: 10 mm
- Weight: 0.95 kg
- Minimum starting torque: 0 Nm
- Stall torque: 0 Nm
- Torque at max power: 9 Nm
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Reversible
- Shaft loading code: b
- Spindle type: Keyed shaft
- Starting system: None
- Max output power: 0.2 kW
- Max free speed range: 100 rpm
- Safety: Index of protection (IP code)
- Air consumption at load: 5.8 l/s
- Air flow max power: 5.8 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
-
New Grade - 24 Months Warranty from purchase is available on this product.
