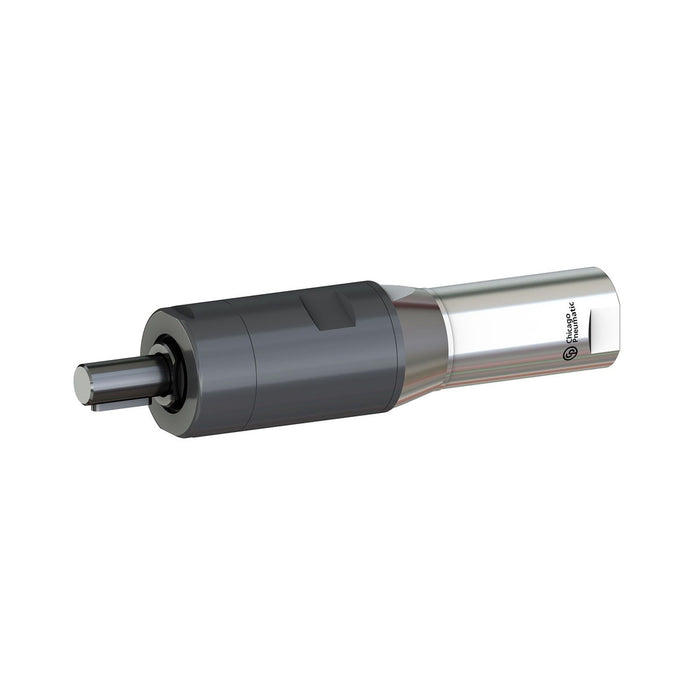

Chicago Pneumatic M84-200-K-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479204
The Chicago Pneumatic M84-200-K-ATEX delivers reliable, explosion-safe rotary power for demanding industrial environments where conventional electric motors simply cannot operate. Engineered as a certified ATEX-compliant pneumatic motor, this non-reversible vane air motor produces 840 W of consistent output power, making it an outstanding choice for facilities handling flammable gases, vapours, or combustible dust. Its robust vane-driven design ensures smooth, controlled torque delivery across a wide range of process applications, giving engineers and maintenance teams confidence in both performance and workplace safety compliance. Connecting via a 3/8-inch BSP air inlet thread, the unit draws 16 litres per second at load - a figure that aligns precisely with maximum airflow for peak power output, simplifying compressed air system planning and minimising installation complexity. The non-reversible configuration keeps the drive direction consistent, reducing mechanical variables in fixed-process machinery and automated equipment lines. As a dependable air motor solution, the M84-200-K-ATEX integrates seamlessly into conveyor systems, mixing equipment, grinding assemblies, and custom pneumatic drive rigs where spark-free operation is mandated by regulation or risk assessment. Whether specifying for an oil refinery, chemical processing plant, grain handling facility, or pharmaceutical production line, this air-powered motor from Chicago Pneumatic provides the combination of certified safety, substantial power density, and straightforward pneumatic integration that maintenance engineers and equipment designers consistently rely on when performance and personnel protection must go hand in hand.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 16 l/s
- Air flow max power: 16 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 200 rpm
- Minimum starting torque: 121 Nm
- Stall torque: 149 Nm
- Torque at max power: 75 Nm
- Max output power: 0.8 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Clockwise
- Shaft loading code: g
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 16 mm
- Weight: 2.7 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
