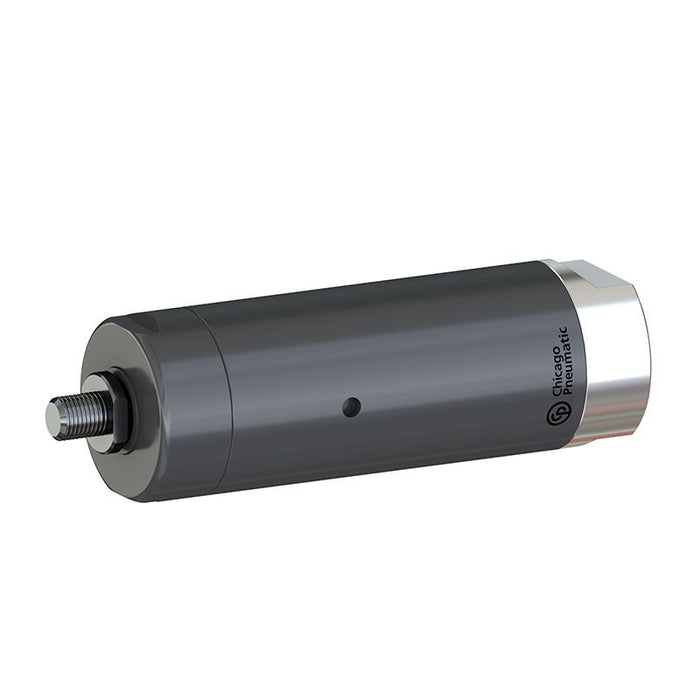

Chicago Pneumatic M3901-650-TL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051481684
Delivering reliable rotational power in the most demanding and hazardous industrial environments, the Chicago Pneumatic M3901-650-TL-ATEX reversible air motor provides 400 W of consistent output at 650 RPM, making it an exceptional choice for engineers and maintenance professionals who cannot compromise on performance or safety. Certified to ATEX standards, this pneumatic motor is specifically engineered for use in explosive atmospheres, giving operators the confidence to work in environments where conventional air tools would pose an unacceptable risk. Built to withstand harsh conditions, the M3901-650-TL-ATEX carries an IP66 ingress protection rating, ensuring complete resistance against powerful water jets and total protection from dust ingress. This makes it equally suited to outdoor installations, washdown environments, and heavy industrial settings where contamination is an ever-present concern. The motor draws 8.1 l/s air consumption at load, with a matching maximum power airflow of 8.1 l/s, allowing system designers to plan compressed air supply with precision and efficiency. The reversible functionality adds further versatility, enabling clockwise and counter-clockwise rotation to suit a wide variety of drive and actuation applications. As a heavy-duty pneumatic motor built on Chicago Pneumatic's trusted engineering heritage, this unit is ideally deployed in chemical processing plants, offshore platforms, mining facilities, and other ATEX-classified zones where dependable air motor performance is critical to safe and productive operations. Product Features: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Index of protection (IP code): IP66
- Air consumption at load: 8.1 l/s
- Air flow max power: 8.1 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Max free speed range: 650 rpm
- Minimum starting torque: 21 Nm
- Stall torque: 23 Nm
- Torque at max power: 11.5 Nm
- Max output power: 0.4 kW
- Back Head Coaxial: Yes
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Output Spindle Thread: 5/8-16 UNF
- Rotation drive: Clockwise
- Shaft loading code: c
- Spindle type: Threaded shaft
- Starting system: None
- Weight: 1.02 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
