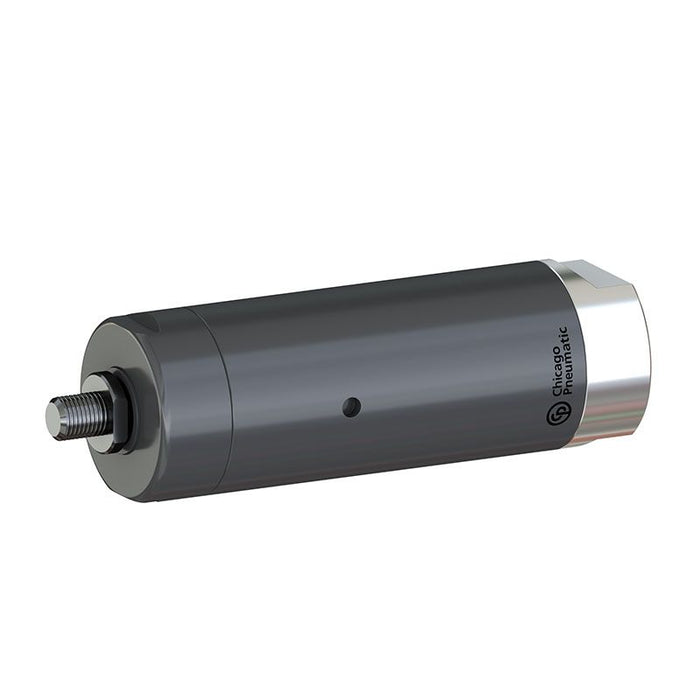

Chicago Pneumatic M3901-2400-TL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051481674
Delivering reliable, explosion-safe rotary power in the most demanding industrial environments, the Chicago Pneumatic M3901-2400-TL-ATEX reversible air motor provides 400 W of continuous output at 2400 RPM, making it an exceptional choice for facilities where ignition hazards are a constant concern. Engineered to ATEX certification standards, this pneumatic motor is purpose-built for use in potentially explosive atmospheres, giving safety officers and plant managers the compliance assurance they need without sacrificing performance. The M3901-2400-TL-ATEX carries an IP66 rating, ensuring full protection against powerful water jets and dust ingress - ideal for washdown environments and outdoor installations where exposure to the elements is unavoidable. With an air consumption at load of 8.1 l/s and the same figure at maximum power, this air motor delivers a consistent and predictable power curve that integrates seamlessly into automated and semi-automated production lines. The air inlet thread size accommodates standard industrial pneumatic fittings, simplifying installation and reducing downtime during commissioning. As a reversible pneumatic motor, it supports bidirectional operation, extending its versatility across a wide range of torque-driven applications. Whether it is driving conveyor systems, actuating valves, powering mixing equipment, or serving as the force behind custom air tools in hazardous zone classifications, this Chicago Pneumatic air motor brings robust, oil-free rotary motion wherever compressed air is available, making it a trusted solution for petrochemical, pharmaceutical, and heavy manufacturing operations worldwide. Product Features: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Index of protection (IP code): IP66
- Air consumption at load: 8.1 l/s
- Air flow max power: 8.1 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Max free speed range: 2400 rpm
- Minimum starting torque: 6.1 Nm
- Stall torque: 6.4 Nm
- Torque at max power: 3.2 Nm
- Max output power: 0.4 kW
- Back Head Coaxial: Yes
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Output Spindle Thread: 5/8-16 UNF
- Rotation drive: Clockwise
- Shaft loading code: c
- Spindle type: Threaded shaft
- Starting system: None
- Weight: 0.75 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
