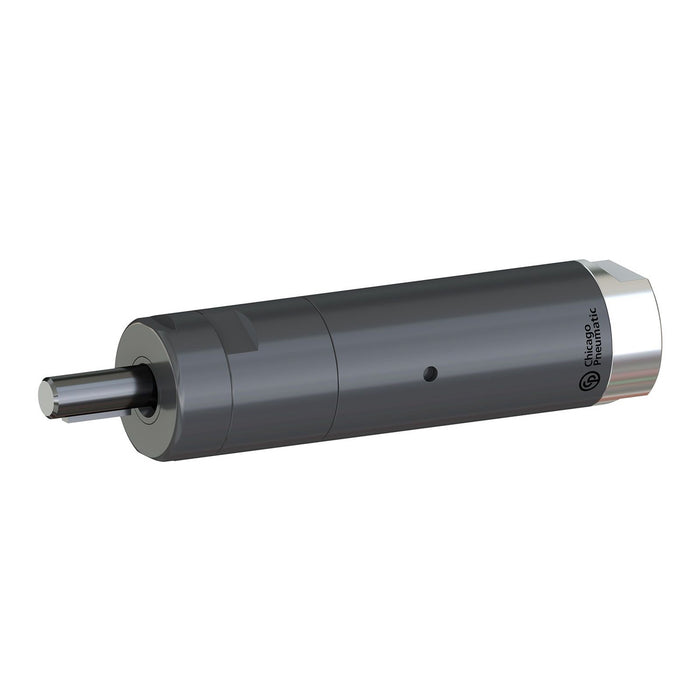

Chicago Pneumatic M39-19000-KL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478574
Delivering exceptional rotational performance in hazardous environments, the Chicago Pneumatic M39-19000-KL-ATEX air motor offers professionals a reliable ATEX-certified solution where safety and precision are non-negotiable. Rated at 390 W of power output with an impressive free speed of 19,000 RPM, this pneumatic motor is engineered to handle demanding industrial grinding, drilling, and machining applications without compromise. The unit draws an air consumption of 8.1 l/s at load, matching the maximum air flow at peak power, ensuring consistent and predictable performance throughout extended operation cycles. Featuring a 1/4-inch BSP air inlet thread, the M39-19000-KL-ATEX integrates seamlessly with standard workshop and industrial pneumatic supply lines, minimising installation complexity across a wide range of setups. Its compact yet robust construction makes it a natural fit for use as a direct drive component or as the powerhouse behind a pneumatic die grinder assembly, particularly where ATEX compliance is mandated by regulation or site safety requirements. As a high-speed air motor, this Chicago Pneumatic unit performs exceptionally well in paint mixing, surface finishing, and precision tooling environments found in petrochemical, pharmaceutical, and offshore industries. Engineers and maintenance professionals sourcing certified air tools for Zone 1 and Zone 2 classified areas will find the Chicago Pneumatic M39-19000-KL-ATEX to be a dependable and specification-compliant choice that keeps operations running safely and efficiently.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 8.1 l/s
- Air flow max power: 8.1 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 19000 rpm
- Minimum starting torque: 0.76 Nm
- Stall torque: 0.8 Nm
- Torque at max power: 0.4 Nm
- Max output power: 0.4 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: c
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 12 mm
- Weight: 0.75 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
