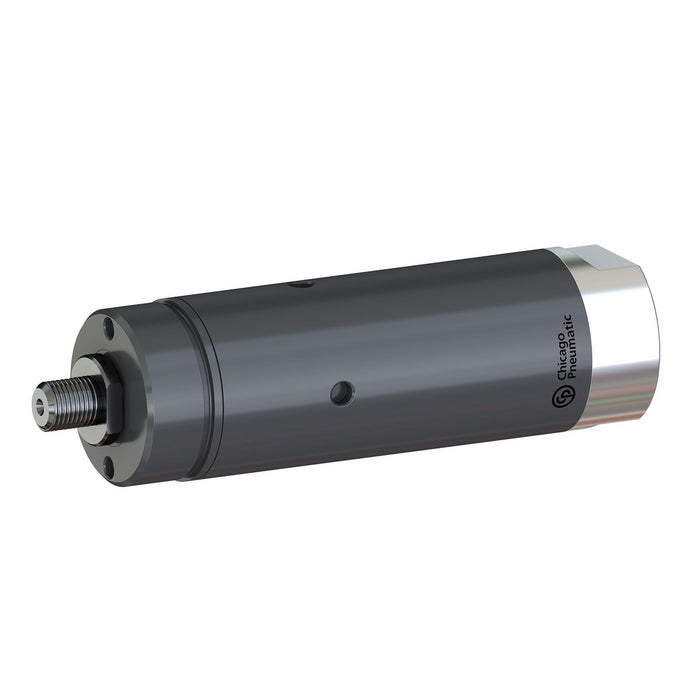

Chicago Pneumatic M25-480-TL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478354
Engineered for environments where safety and performance cannot be compromised, the Chicago Pneumatic M25-480-TL-ATEX delivers reliable, consistent power in hazardous and potentially explosive atmospheres. This ATEX-certified non-reversible vane air motor produces 250 W of output power, making it an outstanding pneumatic motor solution for demanding industrial applications where electrical equipment poses unacceptable risk. Drawing on a compact yet robust design, this air motor operates with an air consumption of 5.3 l/s at load, ensuring efficient use of compressed air resources without sacrificing performance. The maximum airflow at peak power also runs at 5.3 l/s, providing a predictable and stable power curve that integrates seamlessly into existing pneumatic systems. Connection is straightforward thanks to the 1/8-inch BSP air inlet thread, a widely adopted standard that simplifies installation across a broad range of industrial rigs and assemblies. As a precision-built pneumatic motor, the M25-480-TL-ATEX operates at approximately 4,800 RPM, offering the rotational speed necessary for grinding, cutting, and finishing tasks in classified hazardous zones. Its non-reversible vane configuration ensures directional consistency, reducing operator error and supporting repeatable results in production environments. The ATEX certification adds a critical layer of compliance for oil and gas facilities, chemical processing plants, and other Zone 1 or Zone 2 classified workplaces where intrinsically safe air tools are a regulatory requirement rather than a preference.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5.3 l/s
- Air flow max power: 5.3 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 480 rpm
- Minimum starting torque: 22 Nm
- Stall torque: 23.6 Nm
- Torque at max power: 11.8 Nm
- Max output power: 0.3 kW
- Back Head Coaxial: No
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Output Spindle Thread: 3/8-24 UNF
- Rotation drive: Clockwise
- Shaft loading code: b
- Spindle type: Threaded shaft
- Starting system: None
- Weight: 0.75 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
