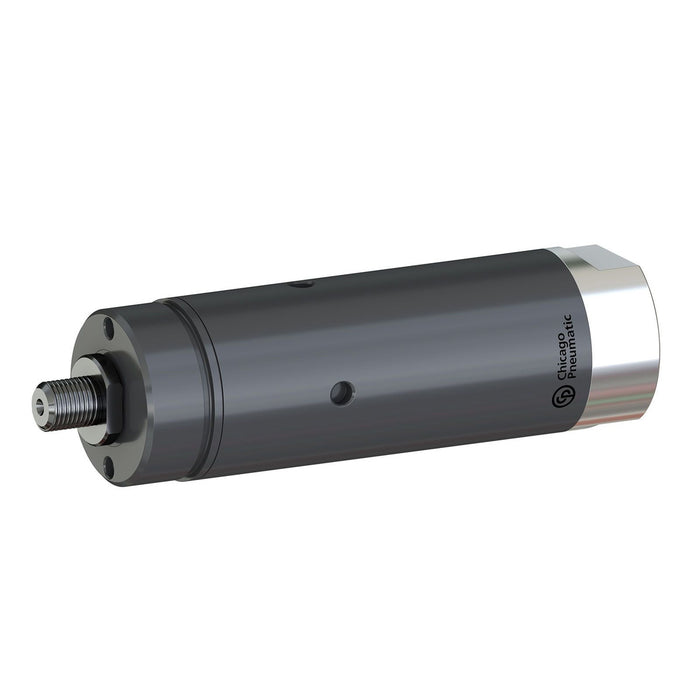

Chicago Pneumatic M25-21500-TL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478294
Delivering reliable rotational power in hazardous environments, the Chicago Pneumatic M25-21500-TL-ATEX non-reversible vane air motor offers engineers and maintenance professionals a dependable 250 W output where electrical equipment simply cannot be used safely. ATEX-certified for use in explosive atmospheres, this pneumatic motor is engineered to meet the stringent demands of petrochemical, pharmaceutical, and offshore industries without compromising on performance or operator safety. The motor draws on a clean, consistent air supply with an air consumption rate of 5.3 l/s at load, matching air flow at maximum power for predictable, stable operation throughout the working cycle. The compact 1/8-inch BSP air inlet thread makes integration straightforward within existing pneumatic systems, reducing installation time and ensuring a secure, leak-free connection. As a non-reversible unit, it is purpose-built for applications requiring consistent unidirectional torque, delivering smooth, repeatable performance cycle after cycle. As a true air motor rather than an electrically driven unit, the M25-21500-TL-ATEX eliminates ignition risks associated with motors operating near flammable gases or combustible dust. Its vane-driven design offers excellent power-to-weight characteristics typical of premium Chicago Pneumatic pneumatic motor technology, making it well suited for driving conveyors, mixers, agitators, and automation equipment in Zone 1 and Zone 2 classified locations where robust, maintenance-friendly air tools are the only viable solution.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5.3 l/s
- Air flow max power: 5.3 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 21500 rpm
- Minimum starting torque: 0.51 Nm
- Stall torque: 0.54 Nm
- Torque at max power: 0.27 Nm
- Max output power: 0.3 kW
- Back Head Coaxial: No
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Output Spindle Thread: 3/8-24 UNF
- Rotation drive: Clockwise
- Shaft loading code: b
- Spindle type: Threaded shaft
- Starting system: None
- Weight: 0.55 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
