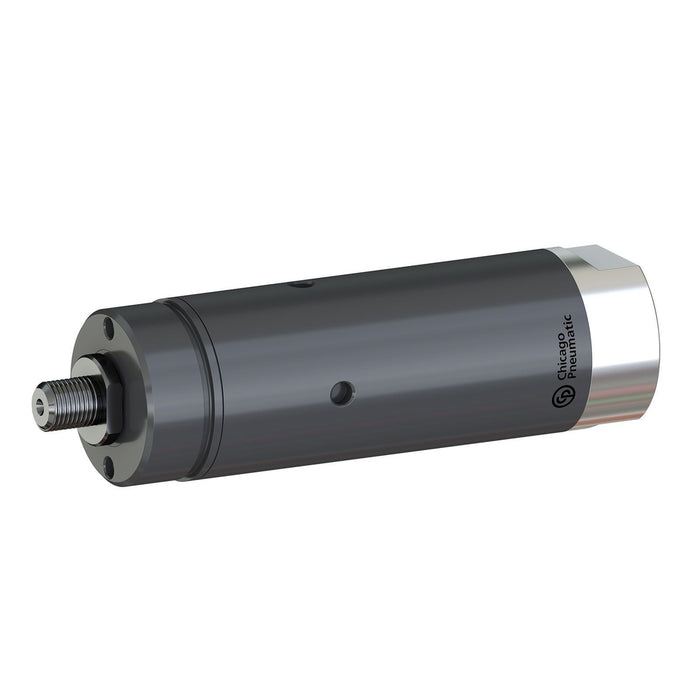

Chicago Pneumatic M25-2100-TL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478324
Delivering consistent rotational power in hazardous environments where electrical motors simply cannot operate safely, the Chicago Pneumatic M25-2100-TL-ATEX non-reversible vane air motor provides 250 W of reliable pneumatic output for demanding industrial applications. Engineered to ATEX certification standards, this compact air motor offers peace of mind wherever flammable atmospheres or explosive dust environments are present, making it the go-to choice for petrochemical, mining, and offshore facilities that require certified pneumatic motor solutions. The M25-2100-TL-ATEX operates with an air consumption of 5.3 l/s at load, matched precisely to the air flow required at maximum power, ensuring efficient use of compressed air supply without wasteful overconsumption. Connection is straightforward through a 1/8-inch BSP air inlet thread, allowing seamless integration into existing pneumatic systems and pipework. As a non-reversible vane air motor, it delivers smooth, unidirectional torque with the mechanical simplicity that pneumatic motors are renowned for - fewer moving parts, lower maintenance demands, and outstanding durability in tough conditions. Compact enough to be embedded into custom tooling assemblies or used as a direct replacement drive unit, this Chicago Pneumatic pneumatic motor suits applications such as conveyor drives, agitators, actuators, and purpose-built air tools across industries where ATEX-rated air-powered equipment is a regulatory requirement rather than an option.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5.3 l/s
- Air flow max power: 5.3 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 2100 rpm
- Minimum starting torque: 5.1 Nm
- Stall torque: 5.4 Nm
- Torque at max power: 2.7 Nm
- Max output power: 0.3 kW
- Back Head Coaxial: No
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Output Spindle Thread: 3/8-24 UNF
- Rotation drive: Clockwise
- Shaft loading code: b
- Spindle type: Threaded shaft
- Starting system: None
- Weight: 0.55 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
