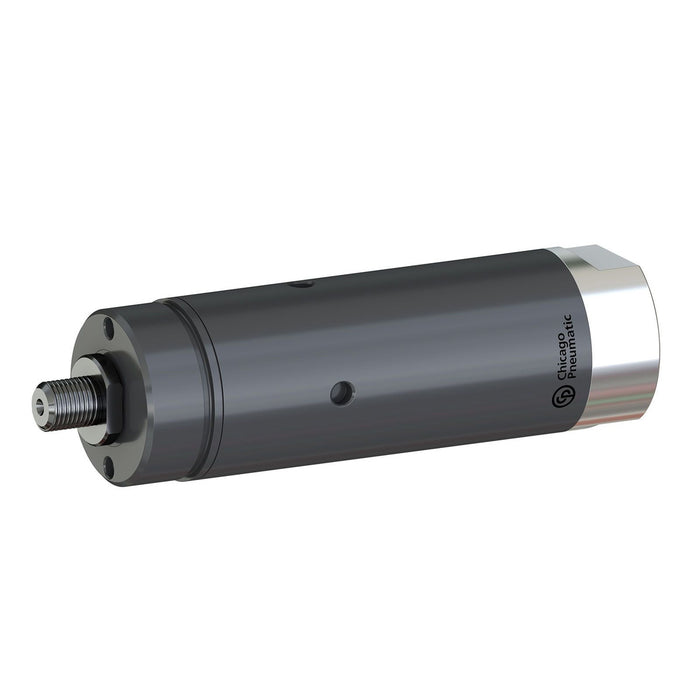

Chicago Pneumatic M25-1040-TL-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051478334
Engineered for hazardous environments where performance and safety cannot be compromised, the Chicago Pneumatic M25-1040-TL-ATEX Non-Reversible Vane Air Motor delivers a reliable 250 W of continuous power output, making it an outstanding choice for facilities operating under strict ATEX-certified conditions. This compact yet robust pneumatic motor is designed to run consistently under demanding industrial loads, offering operators the confidence of a purpose-built solution where explosive atmospheres may be present. The M25-1040-TL-ATEX draws on Chicago Pneumatic's deep heritage in precision air tools, combining efficient vane motor technology with a straightforward 1/8-inch BSP air inlet thread for easy integration into existing compressed air systems. With an air consumption rate of 5.3 l/s at load and a maximum air flow of 5.3 l/s at peak power, this pneumatic motor maintains consistent torque delivery without excessive energy waste, supporting leaner operational costs across extended shift cycles. As a non-reversible unit, it is optimised for unidirectional drive applications where rotational consistency is critical, reducing mechanical complexity and enhancing long-term reliability. The vane-type design ensures smooth, vibration-reduced operation well suited to precision assembly lines, chemical processing equipment, pharmaceutical manufacturing, and other regulated industrial settings where a dependable air motor must meet both performance and zone-compliance requirements simultaneously.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 5.3 l/s
- Air flow max power: 5.3 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 1040 rpm
- Minimum starting torque: 10 Nm
- Stall torque: 10.6 Nm
- Torque at max power: 5.3 Nm
- Max output power: 0.3 kW
- Back Head Coaxial: No
- Front nut threaded: Yes
- Main Material type: Steel
- Motor Lubrication free: Yes
- Output Spindle Thread: 3/8-24 UNF
- Rotation drive: Clockwise
- Shaft loading code: b
- Spindle type: Threaded shaft
- Starting system: None
- Weight: 0.75 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
