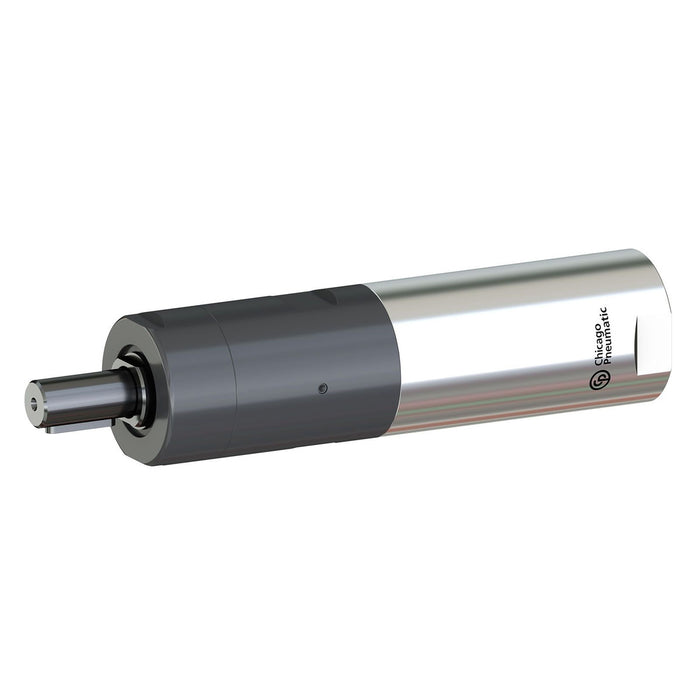

Chicago Pneumatic M180-950-K-ATEX, ATEX Non-Reversible Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479724
Designed for demanding industrial environments where safety and power cannot be compromised, the Chicago Pneumatic M180-950-K-ATEX delivers 1800 W of reliable performance through a robust non-reversible vane air motor configuration built to meet ATEX certification standards. This pneumatic motor is engineered specifically for hazardous locations where explosive atmospheres may be present, making it the trusted choice for petrochemical plants, offshore facilities, and other high-risk industrial settings that demand certified air-powered solutions. Powered by compressed air at a maximum flow rate of 34 l/s at load, the M180-950-K-ATEX connects via a 3/8-inch BSP air inlet thread, ensuring compatibility with standard industrial pneumatic supply systems. The non-reversible vane design provides consistent torque output and predictable directional performance, reducing operator error and improving process control in precision applications. As a dedicated pneumatic motor, it integrates seamlessly into custom machine builds, conveyor systems, and automation rigs where electric motors pose an ignition risk. The air motor format means zero electrical components in the drive unit itself, eliminating spark hazards at source and simplifying maintenance in classified zones. With its solid air consumption efficiency and ATEX-compliant construction, this Chicago Pneumatic air motor suits continuous-duty grinding, mixing, and rotary drive tasks where uptime, safety compliance, and raw power output are equally non-negotiable requirements for engineers specifying equipment in Zone 1 and Zone 2 classified environments.Product Feature: Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 34 l/s
- Air flow max power: 34 l/s
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Safety: Index of protection (IP code)
- Max free speed range: 950 rpm
- Minimum starting torque: 51 Nm
- Stall torque: 68 Nm
- Torque at max power: 34 Nm
- Max output power: 1.8 kW
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Steel
- Motor Lubrication free: No
- Rotation drive: Clockwise
- Shaft loading code: g
- Spindle type: Keyed shaft
- Starting system: None
- Output Spindle size: 19 mm
- Weight: 2.9 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
