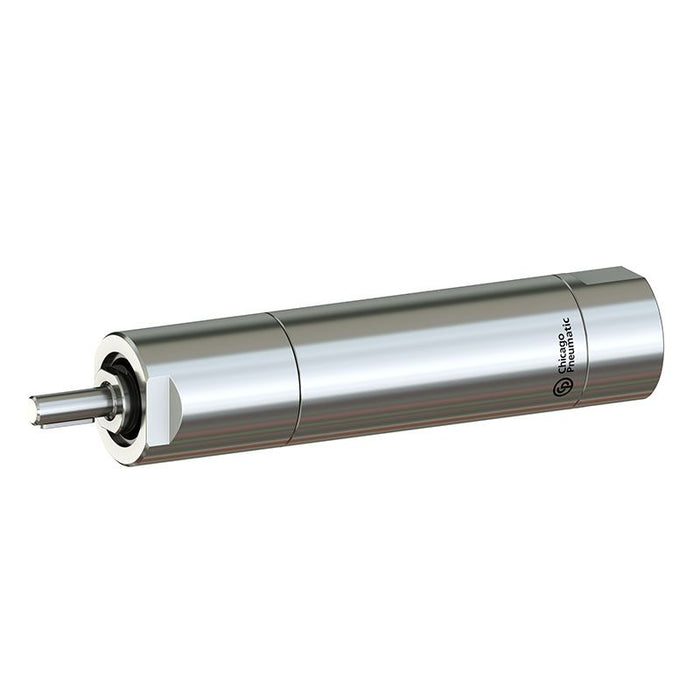

Chicago Pneumatic M16-700-KSL-ATEX, ATEX Non-Reversible Stainless Steel Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479064
Delivering reliable, explosion-safe rotary power in the most demanding industrial environments, the Chicago Pneumatic M16-700-KSL-ATEX Reversible Air Motor is purpose-built for hazardous area applications where safety and performance cannot be compromised. Certified to ATEX standards, this compact pneumatic motor provides engineers and maintenance professionals with a dependable 200 W output power solution that meets the rigorous requirements of Zone 1 and Zone 2 classified workplaces, including petrochemical facilities, refineries, and pharmaceutical manufacturing plants. The M16-700-KSL-ATEX operates at a maximum free speed of 700 rpm, delivering smooth, controlled torque through its reversible drive mechanism. With an air consumption at load of just 4 l/s and a matching maximum power air flow of 4 l/s, this air motor maintains exceptional efficiency across its operating range. The pneumatic motor's reversible capability adds significant operational flexibility, allowing directional changes without tool replacement or complex reconfiguration. As a core component within pneumatic drive systems, the Chicago Pneumatic M16-700-KSL-ATEX integrates seamlessly with custom-built air tools and automated assemblies where electric motors pose an ignition risk. Its robust construction, combined with Chicago Pneumatic's trusted engineering heritage, ensures longevity under continuous industrial duty cycles. This air motor is ideally suited for driving conveyors, mixers, agitators, and precision actuation systems within classified hazardous environments where intrinsically safe, spark-free operation is an absolute requirement. Product Features: Designed with limited retention areas on the housing and double viton nose seals to prevent contamination risk Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max free speed range: 700 rpm
- Max output power: 0.2 kW
- Air consumption at load: 4 l/s
- Air flow max power: 4 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Minimum starting torque: 8.5 Nm
- Stall torque: 9.6 Nm
- Torque at max power: 4.8 Nm
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Stainless steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: a
- Spindle type: Keyed shaft
- Starting system: None
- Index of protection (IP code): IP68,IP66,IP69
- Output Spindle size: 6 mm
- Weight: 0.4 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
