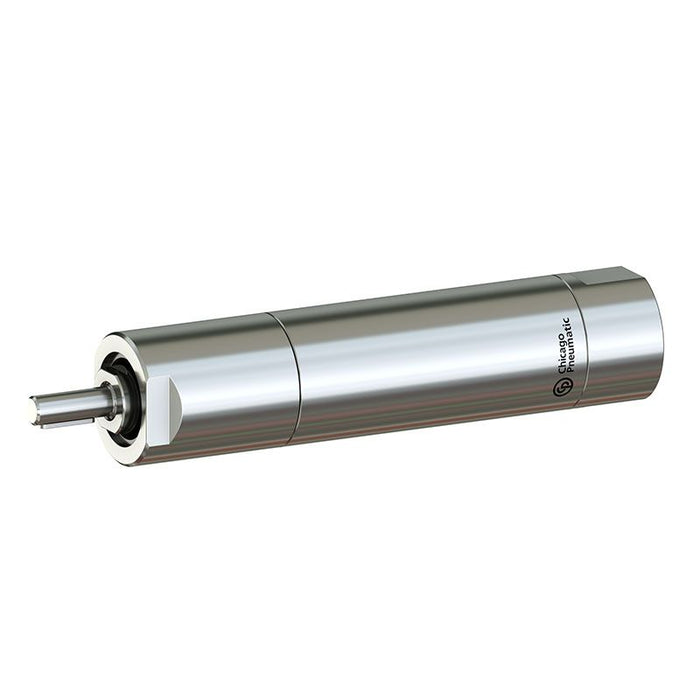

Chicago Pneumatic M16-4800-KSL-ATEX, ATEX Non-Reversible Stainless Steel Air Motor
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 2051479034
Delivering reliable rotary power in the most demanding and hazardous environments, the Chicago Pneumatic M16-4800-KSL-ATEX Reversible Air Motor offers 200 W of maximum output power at a free speed of 4800 rpm, making it an exceptional choice for precision-controlled industrial applications where explosive atmospheres are a genuine concern. Engineered to full ATEX certification standards, this robust pneumatic motor is purpose-built for use in oil and gas facilities, chemical processing plants, and other Zone 1 and Zone 2 classified environments where conventional electric drives simply cannot be deployed safely. The M16-4800-KSL-ATEX operates with an air consumption of 4 l/s at load, delivering consistent torque output while keeping energy usage efficient across extended duty cycles. Its reversible capability adds genuine operational flexibility, allowing operators to adapt the drive direction without tool changes or additional hardware. As a compact and powerful air motor, it integrates seamlessly into custom-built machinery, conveyors, actuators, and automated production systems that require dependable pneumatic drive solutions. Constructed to Chicago Pneumatic's exacting quality standards, this pneumatic motor benefits from the brand's decades of engineering expertise in compressed air technology, ensuring long service life even under continuous industrial use. Whether driving mixing equipment in chemical processing, powering conveyor systems in hazardous storage facilities, or serving as a core drive unit within bespoke machinery, this versatile air motor delivers the performance, safety compliance, and durability that demanding professionals require. Product Features: Designed with limited retention areas on the housing and double viton nose seals to prevent contamination risk Low friction and lubrication-free design of vanes for ruggedness. Sustain stall torque loading indefinitely. Short and compact planetary gear system for versatile solutions Long lasting efficiency with low air consumption design Strong starting torque for mobility during operation About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max free speed range: 4800 rpm
- Max output power: 0.2 kW
- Air consumption at load: 4 l/s
- Air flow max power: 4 l/s
- Air inlet thread size (in): 1/8
- Air inlet thread type: BSP
- Max dynamic air working pressure: 6.3 bar
- Minimum starting torque: 1.23 Nm
- Stall torque: 1.4 Nm
- Torque at max power: 0.7 Nm
- Back Head Coaxial: No
- Front nut threaded: No
- Main Material type: Stainless steel
- Motor Lubrication free: Yes
- Rotation drive: Clockwise
- Shaft loading code: a
- Spindle type: Keyed shaft
- Starting system: None
- Index of protection (IP code): IP66,IP68,IP69
- Output Spindle size: 6 mm
- Weight: 0.37 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
