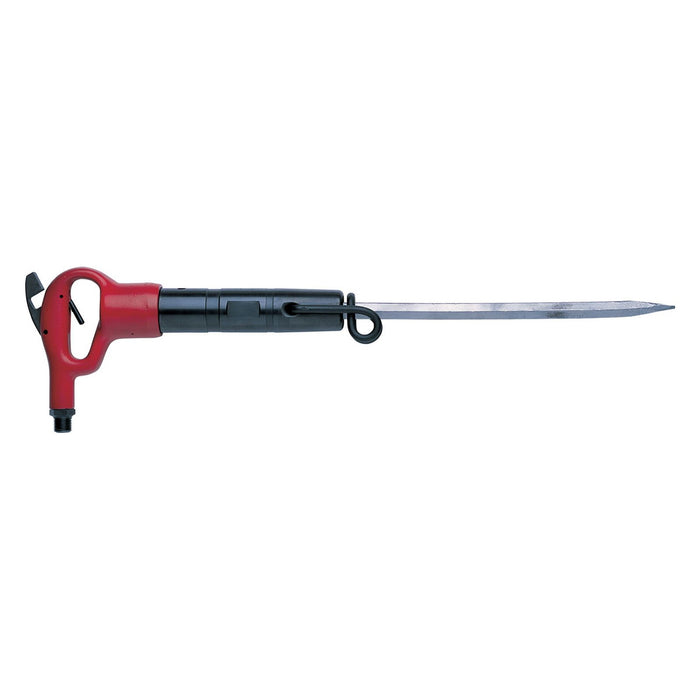

Chicago Pneumatic GV5, 3/4"(19.2mm) Air Chisel
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151740170
The Chicago Pneumatic GV5 air hammer delivers serious industrial striking power for professionals who demand reliability and performance on the toughest jobs. Engineered for heavy-duty applications, this robust pneumatic hammer produces an impressive 2,400 blows per minute combined with 12 joules of impact energy, giving operators the sustained force needed to tackle demanding chipping, scaling, and demolition work with confidence. Designed around a 3/4 inch (19.01mm) hex chisel shank, the GV5 accepts a wide range of standard hex tooling, making it a versatile addition to any workshop or job site toolkit. The hex shank configuration ensures secure tool retention and efficient energy transfer from the air chisel to the workpiece, reducing operator fatigue during extended use. As a professional-grade cp air hammer, it is built to the exacting standards Chicago Pneumatic is renowned for, offering consistent output even under continuous industrial load. The pneumatic chisel design makes the GV5 equally at home in automotive body shops, fabrication facilities, foundries, and construction environments. Whether operators are removing weld spatter, breaking concrete, descaling metal surfaces, or working on heavy castings, this air chisel hammer provides the raw power and dependability needed to get the job done efficiently. For workshops and contractors seeking a high-performance pneumatic hammer that balances power output with durability, the Chicago Pneumatic GV5 represents an outstanding investment in long-term productivity.Product Feature: Sturdy design thanks to its metal body and D-handle A strong hitting power, perfect for heavy industrial applications like roughening, chipping or cutting GV5 has a blow rate which makes it particularly suitable for roughening Hexagonal 3/4" (19,2 mm) Shank. About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Blow per minute: 2400
- Chisel shank: Hex
- Chisel shank diameter (in): 3/4
- Chisel shank diameter (mm): 19.01
- Energy: 12 J
- Starting system: Trigger
- Sound Power: 106 dB(A)
- Sound Pressure: 95 dB(A)
- Uncertainty vibration-K: 7.9 m/s²
- Vibration: 19.8 m/s²
- Bore diameter: 28 mm
- Length (L): 385 mm
- Stroke: 52.5 mm
- Weight: 5.1 kg
- Air consumption at load: 8.3 l/s
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
