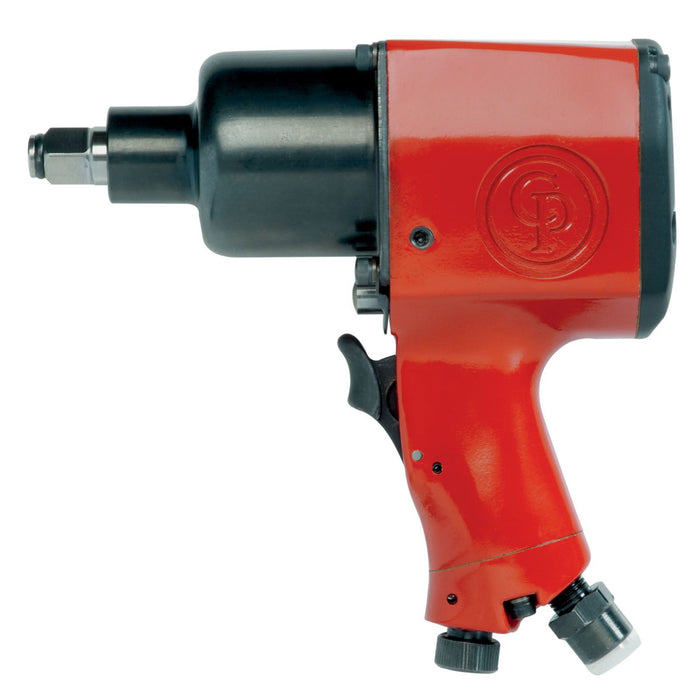

Chicago Pneumatic CP9541, 1/2" Pistol Impact Wrench, 434 Nm Torque, 8900 Rpm Free Speed – 6151909541
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151909541
The CP9541/42/61 series of 3/4", 1" impact wrenches - features the fast and reliable Dyna-Pact pin clutch mechanism, an aluminium body, and steel clutch housing. The design offers high performance in term of torque, vibration, and durability for MRO applications. The range consists of 3 models: CP9541 with ring socket retainer, CP9542 with pin socket retainer for a maximum reverse torque of up to 610 Nm /450 ft.lb. and the 3/4" CP9561 with hole socket retainer, which delivers a maximum reverse torque of up to 1,250 Nm /885 ft.lb.Product Feature: DYNA-PACT - Pin clutch with oil bath for high reliability Durable aluminium body and robust steel clutch housing for extreme durability. Power control through a multi-position regulator at handle level
-
- Max working torque fwd: 434 Nm
- Max torque reverse: 610 Nm
- Min working torque fwd: 34 Nm
- Torque limited: No
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (5 m hose length): 10 mm
- Sound Pressure: 89 dB(A)
- Uncertainty vibration-K: 2.5 m/s²
- Free Speed: 8900 rpm
- Length (L): 168 mm
- Power weight ratio: 240 Nm/kg
- Side to Center: 30 mm
- Weight: 2.5 kg
- Blow per minute: 1100
- Body: Aluminum
- Clutch housing: Steel
- Clutch lubrication type: Grease
- Handle type: Pistol
- Impact mecanism: Pin clutch
- Output drive size (in): 1/2
- Output drive type: Sq
- Output retainer type: Friction ring
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
