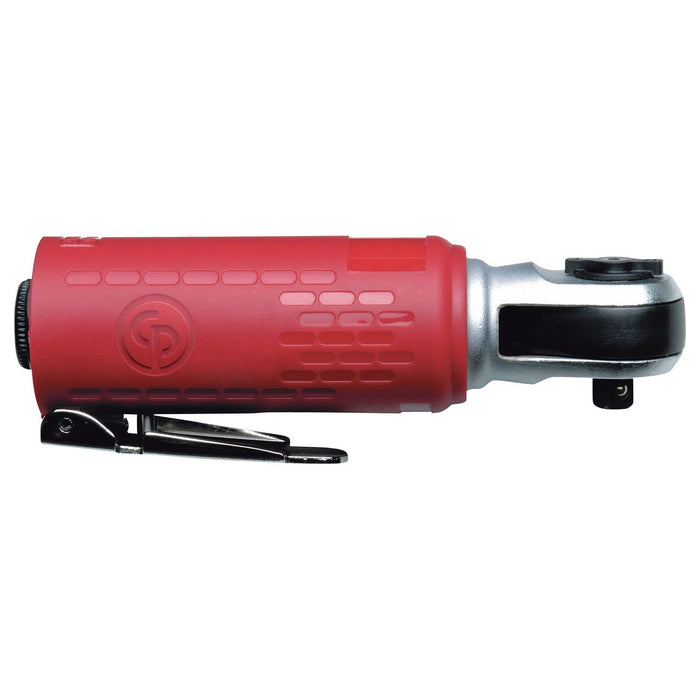

Chicago Pneumatic CP9426, 1/4" Air Ratchet
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151919426
The Chicago Pneumatic CP9426 delivers the precision torque control and compact agility that professional mechanics demand when working in restricted engine bays and tight assembly lines. Engineered with a 35 Nm maximum reverse torque output and a responsive free speed of 270 rpm, this pneumatic ratchet wrench strikes the ideal balance between controlled fastening power and smooth operational speed. The working torque range spans from 7 Nm up to 35 Nm in reverse, giving technicians the versatility to tackle everything from delicate sensor fittings to more demanding fastener applications without risking component damage. Designed around a slender 1/4'' drive, the CP9426 fits comfortably in the hand while accessing fasteners that larger air ratchet wrench tools simply cannot reach. Its well-balanced construction reduces operator fatigue during extended use, making it a reliable companion across long workshop shifts. Compared to alternatives like the chicago pneumatic cp828 and cp828h variants, this model continues Chicago Pneumatic's tradition of building durable, field-ready tools that perform consistently under demanding production conditions. Built for automotive technicians, maintenance engineers, and assembly professionals, the CP9426 is ideally suited to underhood work, gearbox servicing, and production-line fastening where a capable pneumatic ratchet wrench in a compact format makes all the difference. Parts for Machines stocks this tool to support workshops seeking dependable Chicago Pneumatic quality at their fingertips.Product Feature: High power (27 ft.lbs / 35 Nm) for better productivity Extremely compact tool (5.1" / 130 mm) that enables improved comfort and access in hard to reach places About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Free Speed: 270 rpm
- Max working torque reverse: 35 Nm
- Max torque reverse: 35 Nm
- Min working torque reverse: 7 Nm
- Length (L): 128 mm
- Weight: 0.49 kg
- General: Subfamily
- Sound Power: 93 dB(A)
- Sound Pressure: 82 dB(A)
- Uncertainty vibration-K: 1.5 m/s²
- Vibration (m/s²): 5
- Vibration: 5 m/s²
- Air consumption at load: 5.6 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPTF
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (5 m hose length): 10 mm
- Main Material type: Composite
- Output drive size (in): 1/4
- Output drive type: Sq
- Output retainer type: Quick release
- Starting system: Lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
