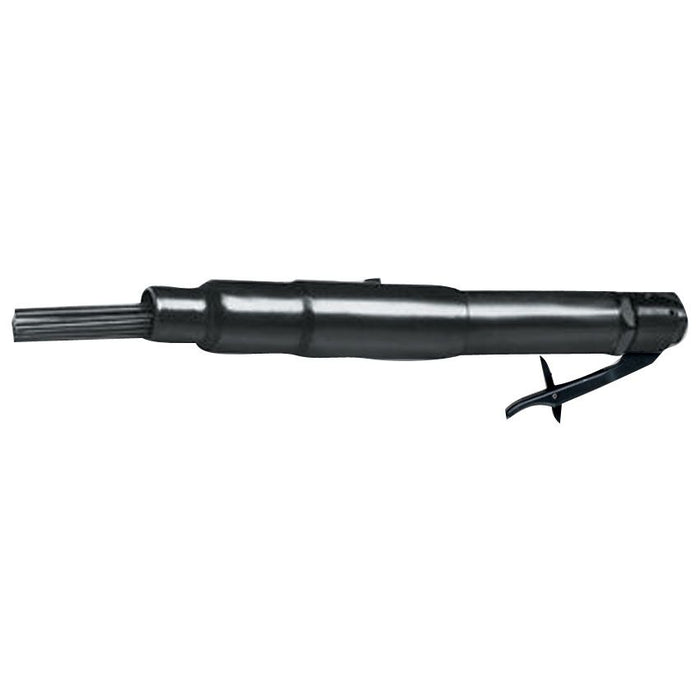

Chicago Pneumatic CP9356NS, 1/8" x19 Air Needle Scaler
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: T022165
The Chicago Pneumatic CP9356NS delivers professional-grade surface preparation in a remarkably compact, lightweight package, making it the go-to choice for tradespeople who demand precision and power in confined spaces. This mini air needle scaler combines robust pneumatic engineering with an ergonomic design, reducing operator fatigue during extended descaling, rust removal, and weld spatter cleaning tasks. Powered by compressed air at a maximum dynamic working pressure of 6.3 bar, the CP9356NS consumes 4.8 l/s at load, ensuring consistent striking force across a full complement of 19 needles. The 1/8'' needle diameter delivers concentrated impact energy precisely where it is needed, making this compact needle scaler particularly effective on complex contoured surfaces, welds, and tight corners where larger tools simply cannot reach. The 3/8'' air inlet thread size ensures compatibility with standard pneumatic supply lines, and a minimum hose diameter recommendation supports optimal airflow for sustained performance. Built to the exacting standards that have made Chicago Pneumatic a trusted name in industrial tooling, this pneumatic needle scaler handles everything from light scale removal to heavy-duty corrosion stripping without compromise. The needle gun configuration suits shipyard maintenance, structural steel fabrication, automotive bodywork, and general metalworking environments where surface cleanliness directly affects coating adhesion and weld integrity. Professionals working in workshops, on scaffolding, or in restricted access areas will find the CP9356NS an indispensable addition to their compressed air tool inventory.Product Feature: Versatile design with good durability Sturdy and simple design for everyday use Easy to convert into a weld flux chipping hammer Needle capacity 19 x 1/8 in (3 mm) About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Air consumption at load: 4.8 l/s
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Blow per minute: 4600
- Chisel shank: Square
- Chisel shank diameter (in): 1/2
- Chisel shank diameter (mm): 12.7
- Energy: 5.5 J
- Needle capacity: 19x1/8 (3)
- Starting system: Safety lever
- Bore diameter: 25.4 mm
- Length (L): 445 mm
- Stroke: 28.6 mm
- Weight: 2.2 kg
- Sound Power: 101 dB(A)
- Sound Pressure: 90 dB(A)
- Uncertainty vibration-K: 3.4 m/s²
- Vibration: 17.3 m/s²
-
New Grade - 24 Months Warranty from purchase is available on this product.
