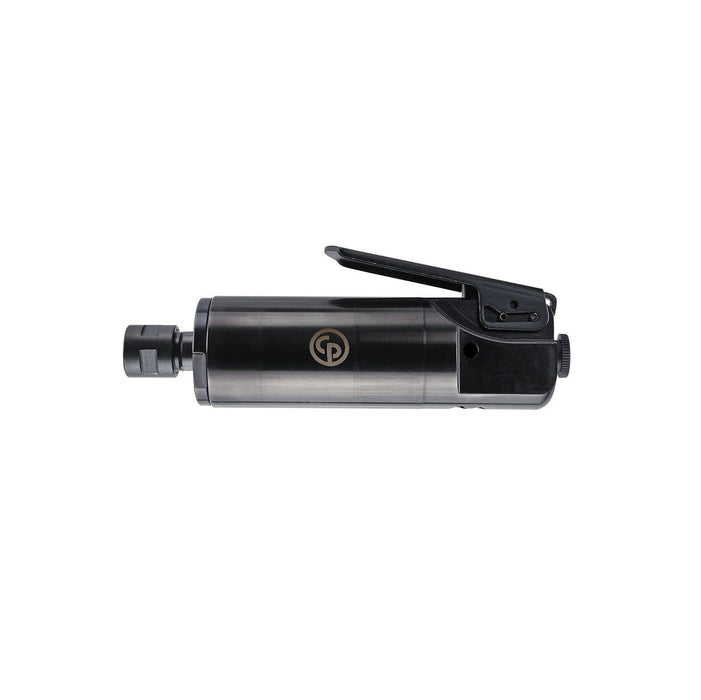

Chicago Pneumatic CP9113G, 1/4"(6mm) Straight Air Die Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151600010
The Chicago Pneumatic CP9113G is a precision-engineered 1/4-inch air die grinder built for professionals who demand consistent performance in demanding grinding, deburring, and surface finishing applications. Delivering an impressive 750 W of maximum power alongside a free speed of 25,000 RPM, this pneumatic die grinder gives operators the rotational force needed to tackle tough materials without sacrificing control or finesse. Weighing just 1.15 kg and measuring a compact 170 mm in length, the CP9113G handles like a natural extension of the hand, reducing operator fatigue during extended use on production lines or in tight workshop spaces. The slender pencil die grinder profile makes it particularly well suited for accessing confined areas where bulkier tools simply cannot reach, whether working on castings, weld seams, or internal cavities. Air consumption at free speed sits at 17 l/s, reflecting the efficient design that Chicago Pneumatic is renowned for across its range of professional air tools. The 6 mm collet accepts a wide variety of mounted points, carbide burrs, and grinding accessories, making this chicago pneumatic die grinder a genuinely versatile addition to any compressed air tool inventory. Ideal for automotive bodywork, aerospace component finishing, metal fabrication, and general engineering environments, the CP9113G performs reliably wherever a high-speed cp die grinder is needed to deliver clean, accurate results on ferrous and non-ferrous metals alike.Product Feature: Machined steel housing for a robust construction. Front exhaust to eliminate dust and to give better visibility Up to 1 hp (750 W) industrial grade motor and 25,000 rpm for a perfect material removal result About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 170 mm
- Weight: 1.15 kg
- Max power: 750 W
- Free Speed: 25000 rpm
- Air consumption at free speed: 17 l/s
- Air consumption at load: 15 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 103.9 dB(A)
- Sound Pressure: 92.9 dB(A)
- Uncertainty vibration-K: 1.8 m/s²
- Vibration: 3.6 m/s²
- Angle Type: Straight
- Collet max capacity: 1/4 (6.35mm)
- Collet/Collet holder/Collet nut type: Erickson series 200 type
- Exhaust: Front
- Governor type: NA
- Main Material type: Steel
- Rotative inlet: No
- Spindle lock: No
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
