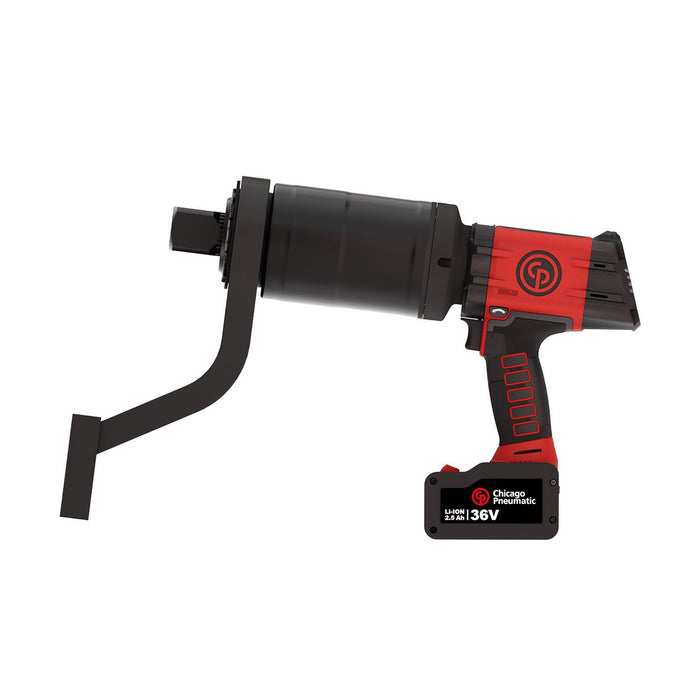

Chicago Pneumatic CP8681, 36V 1-1/2" Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570090
The Chicago Pneumatic CP8681 PACK delivers exceptional cordless torque performance for professionals who demand reliability without the restriction of an air line. Powered by a 36V 2.5Ah battery system, this 1-1/2'' drive battery torque wrench produces an impressive 710 Nm of maximum torque, making it a formidable alternative to a traditional pneumatic impact wrench on heavy-duty fastening applications. The CP impact wrench technology at the heart of this tool ensures consistent, repeatable results whether tackling large bolts on construction sites, heavy plant machinery, or commercial vehicle maintenance. Operator comfort has been carefully considered throughout the design. With a sound pressure level of just 83 dB(A) and sound power of 64 dB(A), the CP8681 PACK operates noticeably quieter than many comparable impact wrench models, reducing fatigue during extended use. Vibration levels kept below 2.5 m/s² further enhance user comfort over long working sessions, meeting strict occupational health guidelines with ease. The cordless format eliminates the need for compressors and air lines, offering the freedom and flexibility that modern workshops and field service teams increasingly require - without sacrificing the raw power professionals expect from a chicago pneumatic impact wrench. The included 36V 2.5Ah battery provides ample run time for demanding shift work. Ideally suited for heavy vehicle mechanics, industrial maintenance engineers, and construction professionals who need a powerful, low-noise, low-vibration 1-1/2'' drive impact wrench capable of performing consistently in tough environments.Product Feature: High precision with +/- 4% Safe tightening with second start button as standard Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Sound Power (dba): <72
- Sound Power: 64 dB(A)
- Sound Pressure: 83 dB(A)
- Vibration (m/s²): <2,5
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 1 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 414 mm
- Width (W): 106 mm
- A: 51 mm
- B: 102 mm
- C: 203 mm
- D: 245 mm
- E: 89 mm
- F: 56 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- M: 65 mm
- Power weight ratio: 710 Nm/kg
- Weight: 11.4 kg
- Weight without reaction arm: 11.4 kg
- Weight with reaction arm: 15.7 kg
- Max torque in forward: 8100 Nm
- Max torque reverse: 8100 Nm
- Min torque in forward: 2000 Nm
- Recommended Torque: 6480 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1-1/2
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
