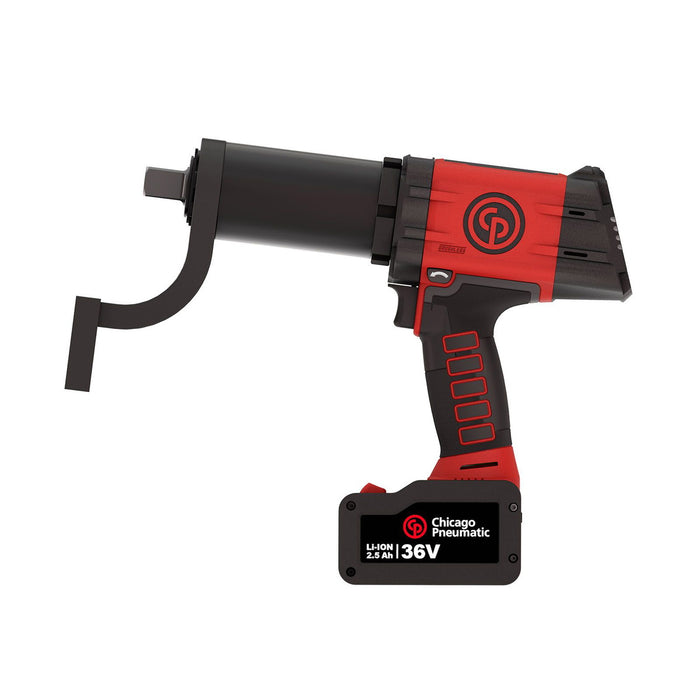

Chicago Pneumatic CP8613CQ, 36V 3/4" Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570020
Delivering unmatched torque control without the constraints of a compressor or hose, the Chicago Pneumatic CP8613CQ PACK brings professional-grade cordless performance to demanding workshop and on-site applications. Engineered for heavy-duty fastening tasks, this 36V 3/4'' battery torque wrench connected solution gives technicians the freedom to work anywhere while maintaining the precision and power associated with top-tier chicago pneumatic impact wrench technology. Powered by a 36V, 2.5Ah battery platform, this cp impact wrench delivers consistent, high-output torque across a full shift without performance fade. The connected functionality allows users to monitor and adjust settings digitally, ensuring repeatable accuracy across every fastening cycle - a genuine advantage for controlled assembly environments and critical joint applications. Operator comfort has been carefully considered in the design. Sound power is rated at 72 dB(A) with sound pressure at 83 dB(A), making it significantly quieter than a traditional pneumatic impact wrench in enclosed workspaces. Vibration levels are kept below 2.5 m/s², reducing operator fatigue during prolonged use and supporting compliance with workplace health and safety standards. The 3/4'' drive square is ideally suited for heavy truck and bus maintenance, agricultural equipment servicing, and industrial machinery assembly where large fasteners demand reliable, repeatable torque. For professionals seeking a cordless alternative that performs with the authority of a conventional impact wrench, the CP8613CQ PACK represents a compelling, future-ready investment.Product Feature: High precision with +/- 4% Safe tightening with second start button as standard Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Sound Power (dba): <72
- Sound Power: 72 dB(A)
- Sound Pressure: 83 dB(A)
- Vibration (m/s²): <2,5
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 10 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 318 mm
- Width (W): 77 mm
- A: 32 mm
- B: 63 mm
- C: 130 mm
- D: 148 mm
- E: 89 mm
- F: 32 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- M: 35 mm
- Power weight ratio: 350 Nm/kg
- Weight: 3.7 kg
- Weight without reaction arm: 3.7 kg
- Weight with reaction arm: 4.5 kg
- Max torque in forward: 1300 Nm
- Max torque reverse: 1300 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 1040 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type included
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
