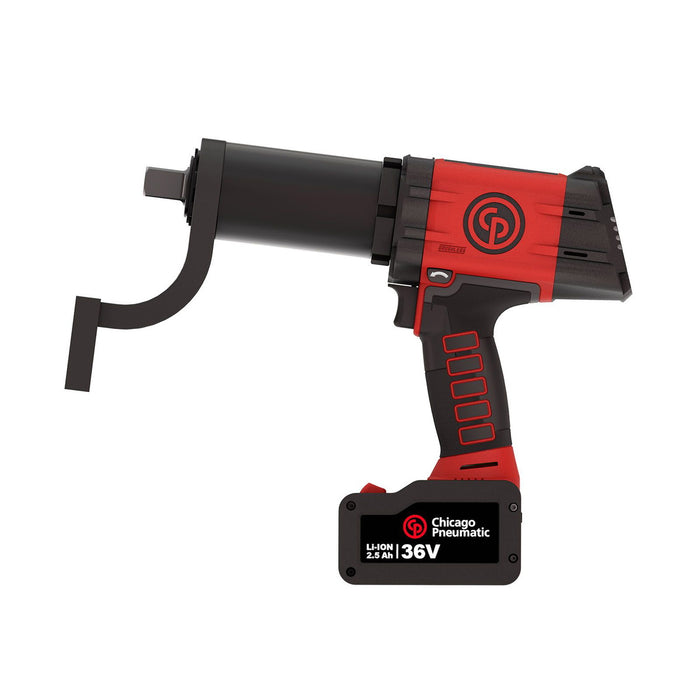

Chicago Pneumatic CP8613, 36V 3/4" Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570000
The Chicago Pneumatic CP8613 PACK delivers professional-grade cordless torque performance for demanding workshop and on-site applications, combining the freedom of 36V battery technology with the raw power of a 3/4-inch drive impact wrench. Rated at an impressive 350 Nm of torque, this cp impact wrench gives technicians and engineers the muscle needed to tackle heavy-duty fastening and removal tasks without being tethered to an air supply - making it a genuine alternative to a traditional pneumatic impact wrench in environments where compressed air is unavailable or impractical. Powered by the included 2.5Ah lithium-ion battery, the CP8613 PACK is engineered for extended run time across shift-length use, while its low-vibration design, measured at under 2.5 m/s², reduces operator fatigue during prolonged operation. The acoustic profile is equally considered, with sound power kept below 72 dB(A) and sound pressure at 83 dB(A), supporting better compliance with workplace noise regulations on busy sites and in enclosed workshop bays. The 3/4-inch square drive makes this chicago pneumatic impact wrench particularly well suited to heavy vehicle maintenance, truck and bus servicing, agricultural machinery, and construction equipment assembly - anywhere large-diameter fasteners demand serious torque output and reliable repeatability. With a compact, ergonomic body and cordless convenience built in, it is an ideal choice for mobile mechanics, fleet workshops, and industrial maintenance teams seeking a high-performance cordless torque solution.Product Feature: High precision with +/- 4% Safe tightening with second start button as standard Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Sound Power (dba): <72
- Sound Power: 72 dB(A)
- Sound Pressure: 83 dB(A)
- Vibration (m/s²): <2.5
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 10 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 318 mm
- Width (W): 77 mm
- A: 32 mm
- B: 63 mm
- C: 130 mm
- D: 148 mm
- E: 89 mm
- F: 32 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- M: 35 mm
- Power weight ratio: 350 Nm/kg
- Weight: 3.7 kg
- Weight without reaction arm: 3.7 kg
- Weight with reaction arm: 4.5 kg
- Max torque in forward: 1300 Nm
- Max torque reverse: 1300 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 1040 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type included
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
