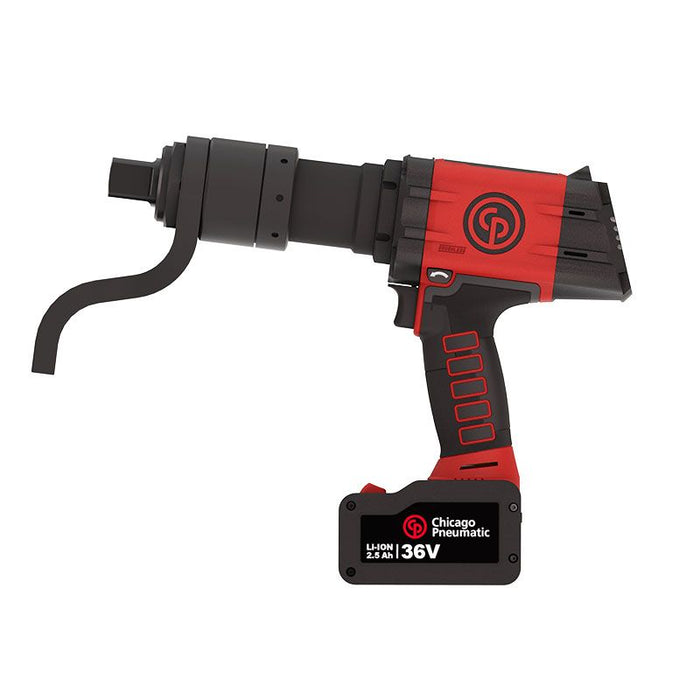

Chicago Pneumatic CP8609TC, 1" Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151571140
The Chicago Pneumatic CP8609TC PACK delivers the precision, power, and smart connectivity that demanding workshops and fleet maintenance teams rely on to keep vehicles rolling safely and efficiently. Designed as a professional-grade commercial torque wrench, this 36V 2.5Ah battery-powered unit combines cordless freedom with the kind of torque accuracy previously reserved for tethered pneumatic systems, making it an outstanding alternative to the traditional pneumatic torque wrench for modern service environments. Running at a remarkably low 58 dB(A) sound pressure level and a sound power rating of just 69 dB(A), well beneath the 83 dB(A) threshold, this tool sets a new benchmark for quiet operation in busy workshop conditions. The low vibration output, with an uncertainty value of just 0.5 m/s², reduces operator fatigue significantly during extended use, helping technicians maintain focus and accuracy across long shifts. The integrated connectivity features allow real-time torque monitoring and data logging, ensuring every fastener is tightened to specification and fully traceable - a critical advantage for quality-controlled operations. Its 1-inch drive makes it equally suited for heavy-duty truck torque wrench applications and lorry torque wrench work, handling the large wheel nuts and chassis fasteners found on commercial vehicles with confidence. Whether used in a busy HGV workshop, a tyre bay, or a fleet maintenance depot, the CP8609TC PACK is the ideal truck wheel torque wrench for professionals who demand accuracy, comfort, and connected intelligence in one capable tool. Product Features: High precision with +/- 4% Safe tightening with second start button as standard Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app Features- CPLinQ app for better control (only on C, CQ and TC versions) and traceability of your process (only on CQ and TC versions). Angle tightening (only on C, CQ and TC versions) Counting sequence to avoid missed tightenings (only on CQ and TC versions) Torque Check to control bolt loosening over time (only on TC version) Automatic reaction arm release to avoid tool to stay blocked on the application About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Sound Power (dba): <83
- Sound Power: 69 dB(A)
- Sound Pressure: 58 dB(A)
- Uncertainty vibration-K: 0.5 m/s²
- Vibration (m/s²): <2.5
- Vibration: 0.4 m/s²
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 341 mm
- Width (W): 77 mm
- A: 33 mm
- B: 67 mm
- C: 153 mm
- D: 171 mm
- E: 89 mm
- F: 32 mm
- I: 117 mm
- J: 67 mm
- K: 76 mm
- M: 34 mm
- Power weight ratio: 180 Nm/kg
- Side to Center: 33.5 mm
- Weight: 4.2 kg
- Weight without reaction arm: 4.2 kg
- Weight with reaction arm: 4.86 kg
- Free Speed: 15 rpm
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 250 Nm
- Recommended Torque: 720 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
