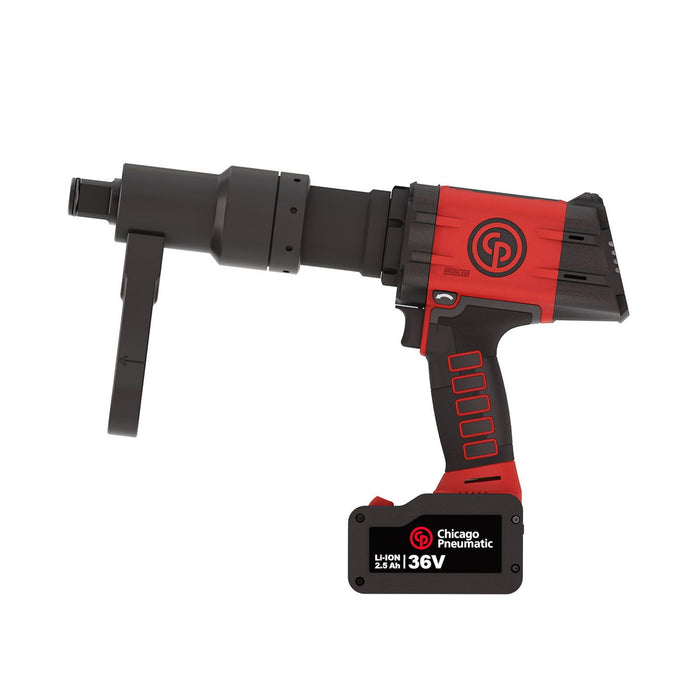

Chicago Pneumatic CP8609TC-C, 36V Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570760
The Chicago Pneumatic CP8609TC-C Pack delivers professional-grade cordless torque control in a robust 1-inch drive configuration, giving workshops and heavy-duty service technicians the freedom to work without hose restrictions while maintaining the precision demands of critical fastening applications. Powered by a 36V 2.5Ah battery system, this cp impact wrench combines impressive torque output with intelligent Torque Check technology, allowing operators to verify and control fastening results directly at the tool - reducing the risk of over- or under-torquing on sensitive assemblies. Engineered with operator comfort firmly in mind, the CP8609TC-C achieves a sound power level of just 73 dB(A) and a sound pressure of 62 dB(A), both well within the sub-83 dB(A) threshold, making it one of the quieter chicago pneumatic impact wrench solutions available for sustained daily use. Vibration levels are kept to a minimum with an uncertainty vibration-K of just 0.6 m/s², reducing operator fatigue during extended shifts and supporting compliance with workplace health and safety standards. The 1-inch drive format makes this cordless impact wrench ideally suited to heavy vehicle maintenance, truck servicing, agricultural equipment repair, and industrial assembly lines where large fasteners demand reliable high-torque performance. Whether replacing pneumatic impact wrench setups or expanding a cordless fleet, the CP8609TC-C Pack provides the durability, control, and battery-powered convenience that demanding professionals depend on.Product Feature: High precision (+/- 4%) for safe tightening Fast and long-lasting gearbox dedicated to wheel tightening Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Sound Power (dba): <83
- Sound Power: 73 dB(A)
- Sound Pressure: 62 dB(A)
- Uncertainty vibration-K: 0.6 m/s²
- Vibration (m/s²): <2.5
- Vibration: 0.6 m/s²
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 15 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 380 mm
- Width (W): 77 mm
- A: 26.5 mm
- B: 67 mm
- C: 191 mm
- D: 211 mm
- E: 89 mm
- F: 33 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- Power weight ratio: 160 Nm/kg
- Side to Center: 33.5 mm
- Weight: 5.6 kg
- Weight without reaction arm: 5.6 kg
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 720 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Reaction bar type: Sliding drive
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
