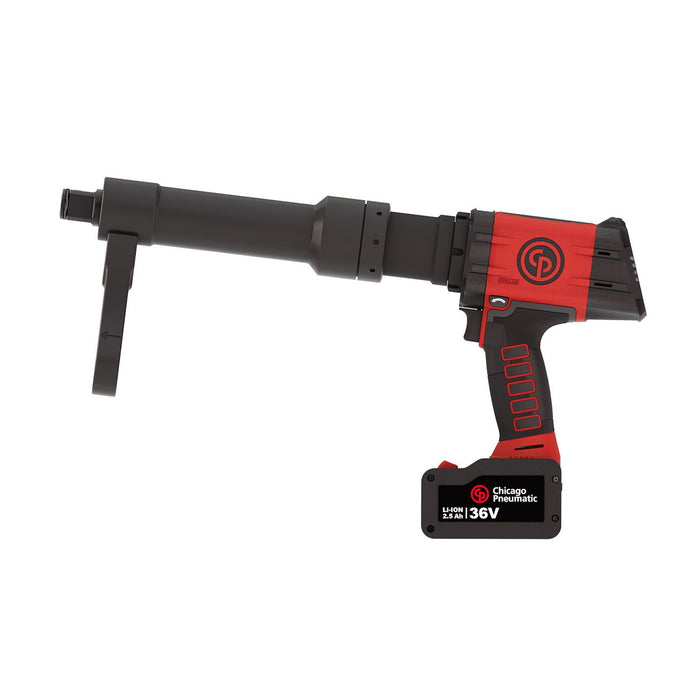

Chicago Pneumatic CP8609CQ-xC, 36V Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570800
Delivering exceptional torque performance with industry-leading operator comfort, the Chicago Pneumatic CP8609CQ-xC PACK 36V 2.5Ah 1'' Battery Torque Wrench Connected redefines heavy-duty fastening for demanding industrial applications. This powerful cp impact wrench combines cordless freedom with the raw capability professionals expect from a 1'' drive platform, eliminating the need for compressors or airlines on the job site without compromising output. Engineered with operator wellbeing at the forefront, the CP8609CQ-xC achieves a remarkably low sound pressure level of just 62 dB(A) and sound power of 73 dB(A), well within the sub-83 dB(A) threshold, significantly reducing noise fatigue during prolonged use. Vibration uncertainty is tightly controlled at just 0.6 m/s², meaning operators can work longer shifts with reduced strain - a critical advantage in high-volume production environments. The 36V 2.5Ah battery system provides consistent, fade-free power across the charge cycle, while the Connected technology integration allows real-time torque monitoring and data logging, supporting traceability requirements in aerospace, rail, and heavy vehicle assembly. The large 1'' square drive handles the most stubborn fasteners found on trucks, agricultural machinery, mining equipment, and construction plant. As a premium chicago pneumatic impact wrench, this tool is the ideal choice for maintenance teams and assembly line operators who demand precise, repeatable torque delivery alongside smart connectivity in a single, ergonomic package.Product Feature: High precision (+/- 4%) for safe tightening Fast and long-lasting gearbox dedicated to wheel tightening Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Sound Power (dba): <83
- Sound Power: 73 dB(A)
- Sound Pressure: 62 dB(A)
- Uncertainty vibration-K: 0.6 m/s²
- Vibration (m/s²): <2.5
- Vibration: 0.6 m/s²
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 15 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 495 mm
- Width (W): 77 mm
- A: 26.5 mm
- B: 67 mm
- C: 305 mm
- D: 325 mm
- E: 89 mm
- F: 34 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- Power weight ratio: 130 Nm/kg
- Side to Center: 33.5 mm
- Weight: 6.9 kg
- Weight without reaction arm: 6.9 kg
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 720 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Reaction bar type: Sliding drive
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
