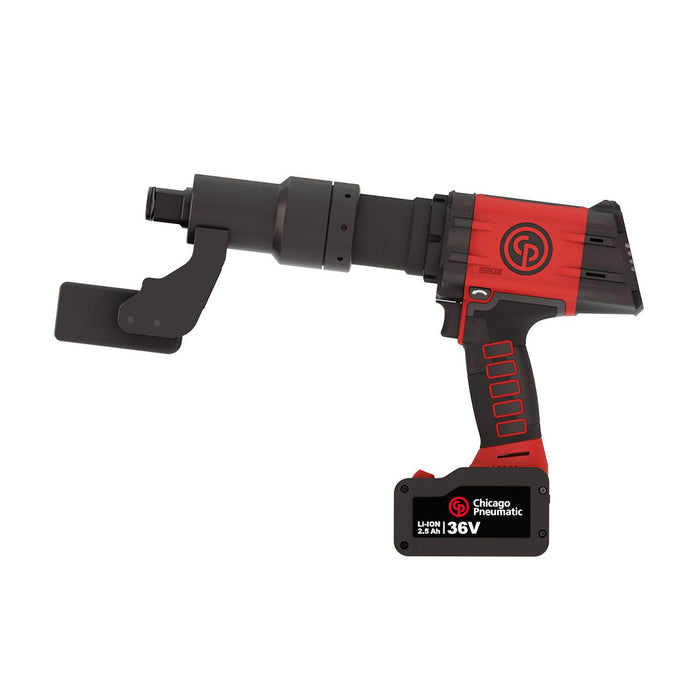

Chicago Pneumatic CP8609CQ-B, 36V Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570520
The Chicago Pneumatic CP8609CQ-B delivers the kind of controlled, data-driven torque performance that serious workshop professionals and fleet maintenance teams have come to expect from a top-tier cp impact wrench. Running on a 36V 2.5Ah battery platform, this connected 1-inch drive torque wrench eliminates the need for compressors entirely, giving technicians the freedom to work in remote bays or on-site without compromising on power or precision. What sets this chicago pneumatic impact wrench apart is its intelligent connectivity, allowing operators to monitor and adjust torque settings digitally for repeatable, traceable results across every fastener. The low vibration output - with an uncertainty vibration-K value of just 0.6 m/s² - significantly reduces operator fatigue during extended use, making it an outstanding choice where comfort and compliance with ergonomic standards matter. Noise levels are equally impressive, with a sound power rating of 73 dB(A) and sound pressure of just 62 dB(A), keeping workplace environments quieter than many traditional pneumatic impact wrench alternatives. These figures sit comfortably below the 83 dB(A) sound power threshold, supporting safer hearing environments on busy workshop floors. The robust 1-inch square drive makes this impact wrench ideally suited for heavy-duty fastening applications including truck and bus wheel removal, industrial assembly lines, and large equipment maintenance where precision torque documentation is critical to quality assurance.Product Feature: High precision (+/- 4%) for safe tightening Fast and long-lasting gearbox dedicated to wheel tightening Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Sound Power (dba): <83
- Sound Power: 73 dB(A)
- Sound Pressure: 62 dB(A)
- Uncertainty vibration-K: 0.6 m/s²
- Vibration (m/s²): <2.5
- Vibration: 0.6 m/s²
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 15 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 380 mm
- Width (W): 77 mm
- A: 26.5 mm
- B: 67 mm
- C: 191 mm
- D: 211 mm
- E: 89 mm
- F: 33 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- Power weight ratio: 150 Nm/kg
- Side to Center: 33.5 mm
- Weight: 5.8 kg
- Weight without reaction arm: 5.8 kg
- Weight with reaction arm: 6.3 kg
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 720 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Reaction bar type: Blade included
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
