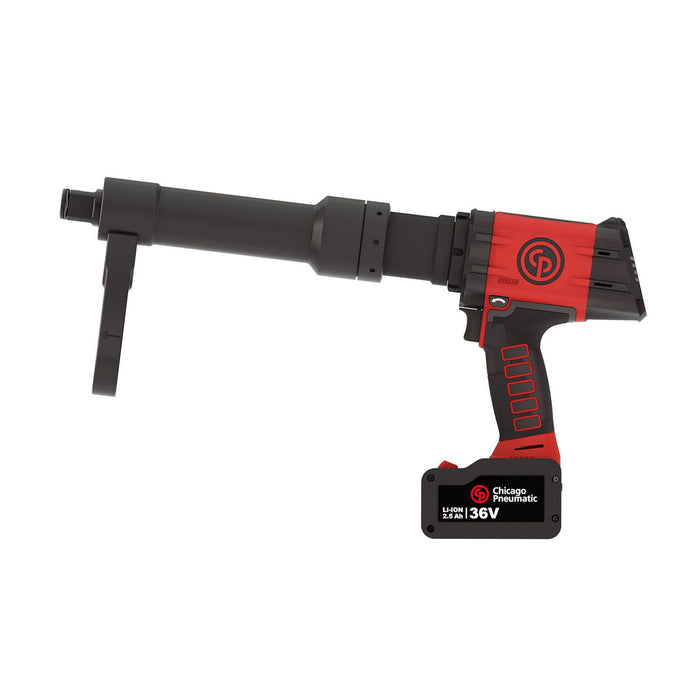

Chicago Pneumatic CP8609C-xCT, 36V Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570630
The Chicago Pneumatic CP8609C-xCT delivers professional-grade fastening performance with the freedom of cordless operation, making it one of the most capable battery-powered torque solutions available for heavy-duty industrial environments. Powered by a 36V 2.5Ah platform, this 1'' drive battery torque wrench produces the high-output force that demanding bolting applications require, rivalling traditional pneumatic impact wrench performance without the need for an air supply. The Connected designation means this tool integrates smart technology, enabling operators to monitor and control torque parameters with precision - a significant advantage for quality-controlled assembly lines and critical infrastructure maintenance. Engineered with operator comfort in mind, the CP8609C-xCT registers a sound pressure level of just 62 dB(A) and a sound power of 73 dB(A), well below the declared limit of 83 dB(A), reducing fatigue and hearing risk during extended use. Vibration output is equally refined, with a low uncertainty vibration K-value of 0.6 m/s², ensuring compliance with workplace exposure guidelines. Compared to a conventional cp impact wrench or 1'' air impact gun, this cordless alternative significantly lowers operator strain across long shifts. Ideal for wind energy maintenance, heavy vehicle servicing, structural steelwork, and large-scale manufacturing, the Chicago Pneumatic CP8609C-xCT suits any professional who demands corded-class torque performance, smart connectivity, and genuine ergonomic advantages from a single, versatile impact wrench solution.Product Feature: High precision (+/- 4%) for safe tightening Fast and long-lasting gearbox dedicated to wheel tightening Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Sound Power (dba): <83
- Sound Power: 73 dB(A)
- Sound Pressure: 62 dB(A)
- Uncertainty vibration-K: 0.6 m/s²
- Vibration (m/s²): <2.5
- Vibration: 0.6 m/s²
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 15 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 495 mm
- Width (W): 77 mm
- A: 26.5 mm
- B: 67 mm
- C: 305 mm
- D: 325 mm
- E: 89 mm
- F: 34 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- Power weight ratio: 130 Nm/kg
- Side to Center: 33.5 mm
- Weight: 6.9 kg
- Weight without reaction arm: 6.9 kg
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 720 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Reaction bar type: Sliding drive
- Reversible: Yes
- Spline type: 0
- Starting system: Trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
