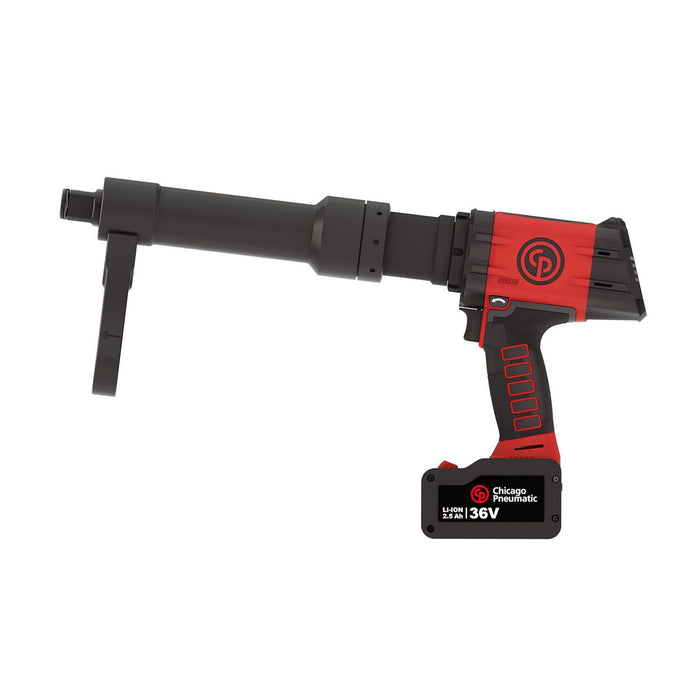

Chicago Pneumatic CP8609C-xC, 36V Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570790
The Chicago Pneumatic CP8609C-xC delivers the raw power of a heavy-duty 1-inch battery torque wrench with the intelligence of connected tool technology, making it the preferred choice for professionals demanding precision and performance on the toughest fastening applications. Powered by a 36V 2.5Ah battery system, this cp impact wrench eliminates the constraints of hoses and compressors without compromising on torque output, giving technicians the freedom to work across large vehicles, heavy equipment, and industrial environments with genuine confidence. Engineered with operator comfort firmly in mind, the CP8609C-xC achieves an impressively low sound power level of just 73 dB(A) and a sound pressure of 62 dB(A), both well within the sub-83 dB(A) threshold that makes prolonged use far less fatiguing than conventional chicago pneumatic impact wrench models. Vibration levels are tightly controlled with an uncertainty value of just 0.6 m/s², reducing long-term strain on hands and wrists during extended shifts. The Connected functionality sets this 1 inch air impact gun equivalent apart from standard battery-driven tools, enabling real-time data monitoring, torque traceability, and seamless integration into smart workshop environments where documentation and quality control are non-negotiable. Whether tackling wheel-end assemblies on heavy trucks, maintaining agricultural machinery, or handling structural bolting on industrial plant, this impact wrench brings professional-grade capability, reduced noise exposure, and digital oversight to every job. Available now at MachineRefurb.com.Product Feature: High precision (+/- 4%) for safe tightening Fast and long-lasting gearbox dedicated to wheel tightening Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Sound Power (dba): <83
- Sound Power: 73 dB(A)
- Sound Pressure: 62 dB(A)
- Uncertainty vibration-K: 0.6 m/s²
- Vibration (m/s²): <2.5
- Vibration: 0.6 m/s²
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 15 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 495 mm
- Width (W): 77 mm
- A: 26.5 mm
- B: 67 mm
- C: 305 mm
- D: 325 mm
- E: 89 mm
- F: 34 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- Power weight ratio: 130 Nm/kg
- Side to Center: 33.5 mm
- Weight: 6.9 kg
- Weight without reaction arm: 6.9 kg
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 720 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Reaction bar type: Sliding drive
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
