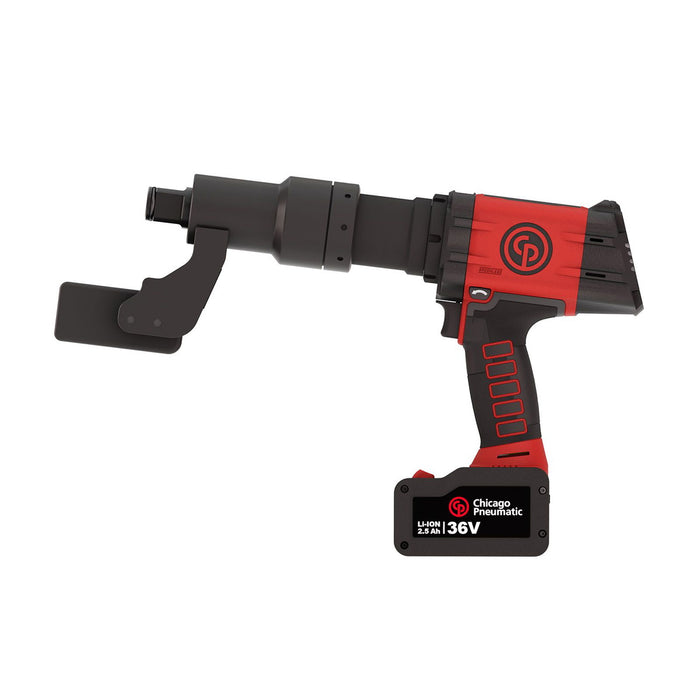

Chicago Pneumatic CP8609-B, 36V Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570500
The Chicago Pneumatic CP8609-B PACK delivers serious cordless torque in a compact, operator-friendly package that redefines what a battery-powered 1'' blade torque wrench can achieve on demanding job sites. Designed for professionals who need consistent, high-output performance without the constraints of an air line, this 36V 2.5Ah system generates up to 150 Nm of torque, making it a genuine alternative to a traditional pneumatic impact wrench in a wide range of assembly and fastening applications. Built with operator comfort firmly in mind, the CP8609-B keeps sound pressure at just 62 dB(A) and sound power at 73 dB(A), well below the 83 dB(A) threshold - a significant advantage over conventional cp impact wrench models in noise-sensitive environments. Vibration is equally well managed, with a low uncertainty vibration-K value of 0.6 m/s², reducing operator fatigue during extended use and supporting compliance with workplace health and safety regulations. The 36V lithium-ion battery platform ensures sustained power delivery across a full shift, while the 1'' blade drive configuration offers versatility across a broad range of sockets and accessories. Compared to a standard air impact wrench, the cordless format eliminates compressor dependency and hose management, improving mobility and workflow efficiency. This chicago pneumatic impact wrench is ideally suited to automotive workshops, industrial maintenance teams, and assembly line operations where precision, low noise, and all-day ergonomic performance are non-negotiable priorities.Product Feature: High precision (+/- 4%) for safe tightening Fast and long-lasting gearbox dedicated to wheel tightening Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Sound Power (dba): <83
- Sound Power: 73 dB(A)
- Sound Pressure: 62 dB(A)
- Uncertainty vibration-K: 0.6 m/s²
- Vibration (m/s²): <2.5
- Vibration: 0.6 m/s²
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Free Speed: 15 rpm
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 380 mm
- Width (W): 77 mm
- A: 26.5 mm
- B: 67 mm
- C: 191 mm
- D: 211 mm
- E: 89 mm
- F: 33 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- Power weight ratio: 150 Nm/kg
- Side to Center: 33.5 mm
- Weight: 5.8 kg
- Weight without reaction arm: 5.8 kg
- Weight with reaction arm: 6.3 kg
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 300 Nm
- Recommended Torque: 720 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Reaction bar type: Blade included
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
