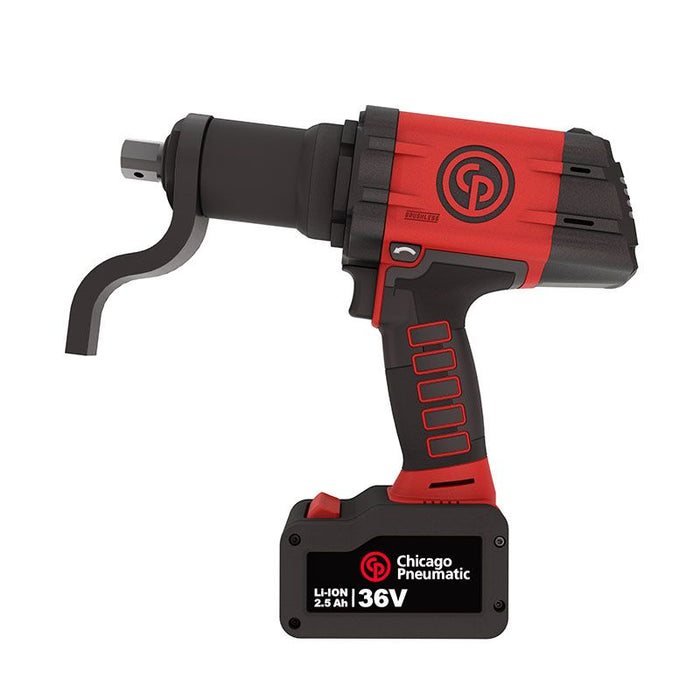

Chicago Pneumatic CP8603CQ, 3/4" Cordless Torque Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151570400
The Chicago Pneumatic CP8603CQ delivers precision fastening performance in a cordless 36V platform, making it the go-to choice for workshop professionals and fleet technicians who demand reliable torque accuracy without the constraints of an air line. Powered by a 2.5Ah lithium-ion battery, this 3/4-inch drive commercial torque wrench combines digital connectivity with genuine working versatility, allowing operators to monitor, adjust, and record torque data directly from the tool via its integrated connected technology - a feature that sets it firmly apart in the truck torque wrench market. Engineered for comfort as well as capability, the CP8603CQ produces a sound power level of just 58.9 dB(A), well below the 72 dB(A) threshold, while vibration is kept under 2.5 m/s² to reduce operator fatigue during extended use. A maximum ambient storage temperature of 60°C ensures the tool remains reliable even in demanding workshop or outdoor environments, giving confidence to technicians working across varying conditions. The cordless design eliminates hose clutter on the shop floor, making this lorry torque wrench equally at home in busy commercial vehicle bays, tyre-fitting centres, and heavy plant workshops. Whether tackling wheel hub assemblies, driveline components, or suspension fasteners on trucks and heavy goods vehicles, this truck wheel torque wrench provides the smart torque management and consistent output that professional technicians require day after day.Product Feature: High precision with +/- 4% Safe tightening with second start button as standard Extended mobility with lightweight and compact battery Automatic release reaction arm Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Sound Power (dba): <72
- Sound Power: 58.9 dB(A)
- Vibration (m/s²): <2.5
- Max Ambient Storage Temperature: 60 °C
- Min Ambient Storage Temperature: -20 °C
- Battery capacity: 2.5 Ah
- Battery type: Lithium-ion
- Battery voltage: 36 V
- Max Ambient Operating Temperature: 60 °C
- Max Recommended Ambient Charging Temperature: 45 °C
- Min Ambient Operating Temperature: 0 °C
- Min Recommended Ambient Charging Temperature: 0 °C
- Battery Weight: 0.8 kg
- Height (H): 285 mm
- Length (L): 363 mm
- Width (W): 77 mm
- A: 28 mm
- B: 54 mm
- C: 91 mm
- D: 111 mm
- E: 89 mm
- F: 34 mm
- I: 116 mm
- J: 67 mm
- K: 76 mm
- M: 17 mm
- Power weight ratio: 110 Nm/kg
- Weight: 2.9 kg
- Weight without reaction arm: 2.9 kg
- Weight with reaction arm: 3.3 kg
- Free Speed: 20 rpm
- Max torque in forward: 325 Nm
- Max torque reverse: 325 Nm
- Min torque in forward: 70 Nm
- Recommended Torque: 260 Nm
- Torque Control System: Shut-off-current control
- Accuracy (%): ±4 %
- Adjustment: Digital
- Handle type: Pistol
- Joint Type: Hard & Soft
- Main Material type: Steel
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: S-type
- Reversible: Yes
- Spline type: 0
- Starting system: Double-trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
