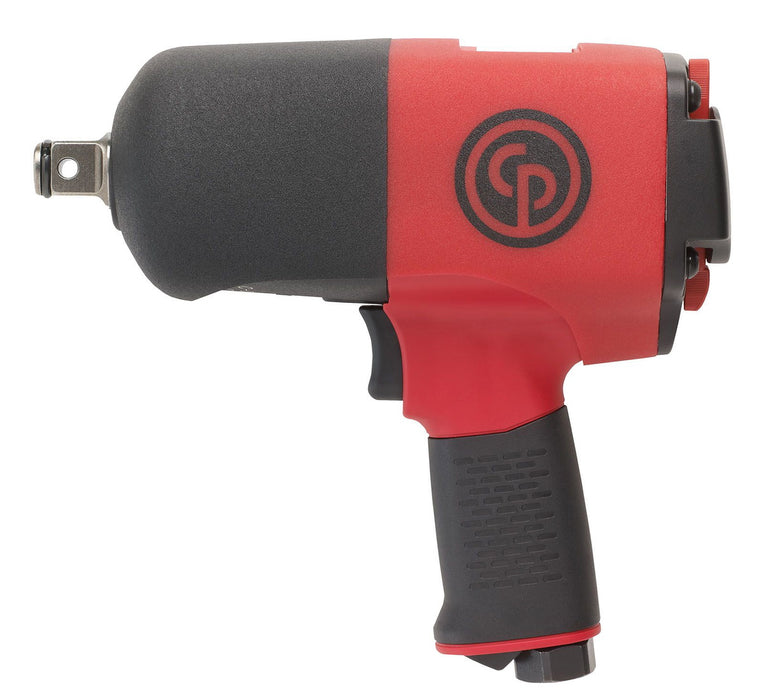

Chicago Pneumatic CP8272-D, 3/4" Pistol Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 6151590260
The Chicago Pneumatic CP8272-D delivers the raw power and reliability that serious workshops and heavy-duty professionals demand, combining an impressive 1250 Nm of maximum forward working torque with a thundering 1650 Nm in reverse to conquer even the most stubborn fasteners with confidence. Designed as a premium chicago pneumatic impact wrench built for sustained performance, this 3/4'' drive pistol-grip model bridges the gap between compact handling and industrial-grade capability, making it a standout choice among air impact wrench options in its class. The CP8272-D operates at a blistering 6500 RPM free speed, ensuring rapid bolt removal and installation across demanding applications. With a minimum working torque of 250 Nm in forward drive, operators retain precise control across a wide torque range without the need for additional limiting mechanisms, keeping workflow smooth and efficient. The tool accepts a standard air inlet connection and is engineered for compatibility with most workshop compressor setups, minimising downtime and maximising versatility across different job environments. Built to the exacting standards that have made Chicago Pneumatic a trusted name in pneumatic tooling, this cp impact wrench suits automotive workshops, truck and bus maintenance facilities, heavy plant servicing, and industrial assembly lines where consistent high-torque output is non-negotiable. Whether tackling wheel hubs, suspension components, or large structural fasteners, the CP8272-D proves itself an indispensable tool for technicians who simply cannot afford to compromise on power or durability.Product Feature: The twin hammer clutch mechanism offers a high power/weight ratio. Low vibration sensation for operator comfort, even at very high torque. Lightweight composite body and aluminium clutch housing 3 power settings ensure high progressive maximum torque for smooth operation. Integrated suspension bail for use with balancer About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 1250 Nm
- Max torque reverse: 1650 Nm
- Min working torque fwd: 250 Nm
- Torque limited: No
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Pressure: 96 dB(A)
- Uncertainty vibration-K: 6.8 m/s²
- Free Speed: 6500 rpm
- Length (L): 230 mm
- Power weight ratio: 500 Nm/kg
- Side to Center: 40 mm
- Weight: 3.65 kg
- Blow per minute: 1000
- Body: Composite
- Clutch housing: Aluminium
- Clutch lubrication type: Grease
- Handle type: Pistol
- Impact mechanism: Twin hammer
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Dual
- Starting system: Trigger
- Suspension option: Optional
-
New Grade - 24 Months Warranty from purchase is available on this product.
