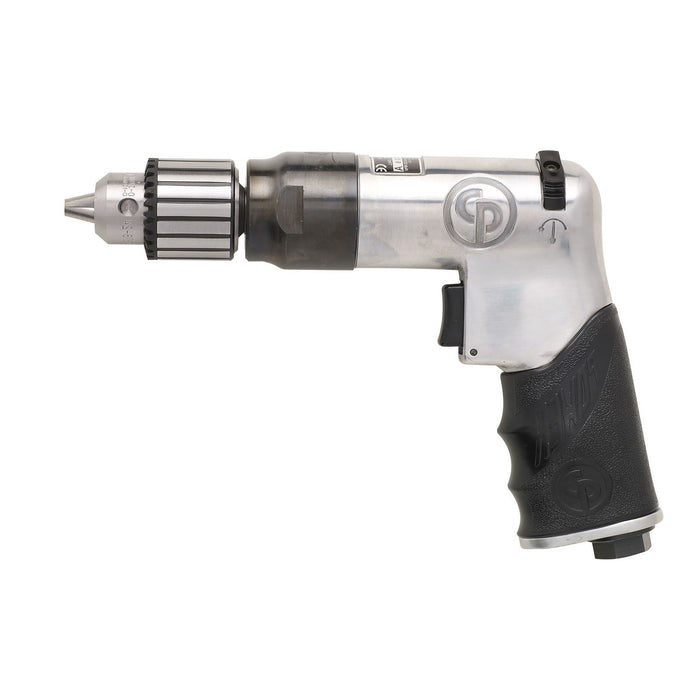

Chicago Pneumatic CP789R-42, 3/8" Air Drill
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: T025198
The Chicago Pneumatic CP789R-42 reversible air drill delivers the precision and reliability that professional technicians demand from a compact, lightweight tool built for sustained industrial use. Constructed from durable aluminium, this chicago pneumatic air drill strikes an ideal balance between robustness and handling comfort, reducing operator fatigue during extended drilling sessions. Powered by 320 W and generating 2.5 Nm of torque, the CP789R-42 provides consistent, controlled performance across a wide range of materials and applications. The 3/8 inch keyed chuck accepts drill bits up to 11 mm in diameter, giving operators confident bit retention and precise concentricity with every use. The pistol-style handle ergonomically fits the hand, enabling accurate control whether the drill is running forward or in reverse - a feature that proves invaluable when backing out fasteners or clearing jammed bits. As a capable cp air drill, it connects seamlessly to standard compressed air supplies found in workshops, production lines, and maintenance environments. The reversible function makes this model a versatile companion not just for drilling but for light assembly and disassembly tasks. With the build quality and engineering heritage that Chicago Pneumatic tools are respected for globally, this chicago pneumatic drill suits automotive workshops, aerospace maintenance bays, and general fabrication settings where reliable performance and compact dimensions are equally important.Product Feature: Thermoplastic rubber handle grip for better operator comfort Teasing trigger allowing more control to start holes Industrial quality Jacobs chuck and gearbox for high durability About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Chuck max capacity (in): 3/8
- Chuck max capacity (mm): 11
- Chuck type: Keyed
- Handle type: Pistol
- Main Material type: Aluminium
- Reversible: Yes
- Starting system: Trigger
- Trigger type: Progressive
- Sound Power: 107 dB(A)
- Sound Pressure: 96 dB(A)
- Vibration (m/s²): <2.5
- Air consumption at load: 14 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Max power: 320 W
- Stall torque: 2.5 Nm
- Free Speed: 4200 rpm
- Air consumption at free speed: 14 l/s
- Length (L): 178 mm
- Weight: 1.13 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
