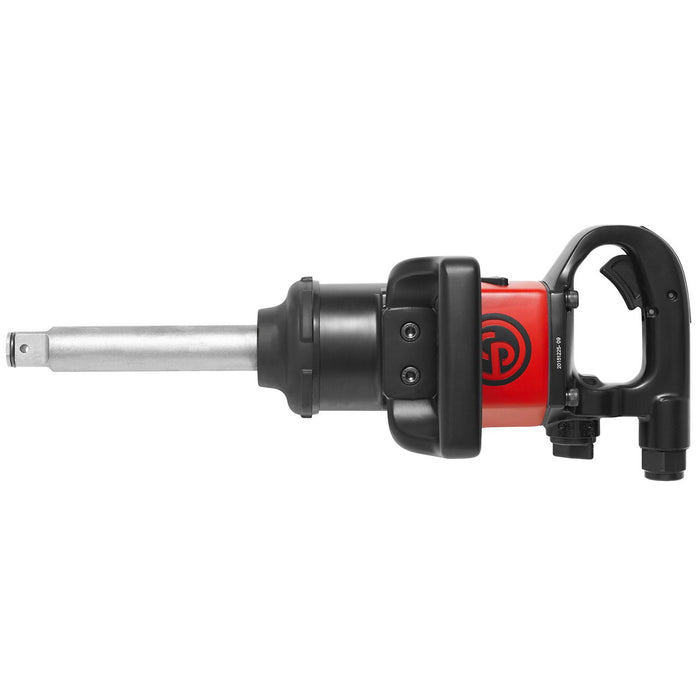

Chicago Pneumatic CP7783-6, 1" Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941077836
The Chicago Pneumatic CP7783-6 delivers the kind of raw, reliable power that heavy-duty workshops and professional mechanics demand without compromise. Engineered around a 1-inch square drive, this cp impact wrench produces an exceptional 1700 Nm of maximum working torque in forward and an impressive 2400 Nm in reverse, making it one of the most capable air impact wrenches available for tackling the toughest fasteners in demanding industrial environments. Running at a free speed of 6200 RPM, the CP7783-6 ensures rapid, efficient operation that keeps productivity high across long working sessions. Its minimum working torque of 560 Nm in forward gives operators meaningful versatility, allowing the tool to handle a broader range of applications beyond maximum-output tasks. The chicago pneumatic impact wrench design philosophy is evident throughout - robust internal components, a balanced ergonomic housing, and the kind of build quality professionals have come to trust from the Chicago Pneumatic brand. Connecting via a standard air supply, this tool integrates smoothly into existing pneumatic setups found in commercial workshops, fleet maintenance facilities, and heavy equipment servicing bays. The CP7783-6 is particularly well suited to truck and bus wheel removal, agricultural machinery servicing, mining equipment maintenance, and any application where consistently high torque output and long-term durability are non-negotiable requirements for the job at hand.Product Feature: Lightweight tool for reduced operator fatigue 1,770 ft.lbs (2,400 Nm) max torque in reverse for high productivity Metal housing and pinless closed reinforced rocking dog impact mechanism for high durability Four positions for D-handle placement to provide ultimate operator comfort Top or down exhaust, quick and easy to change About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 1700 Nm
- Max torque reverse: 2400 Nm
- Min working torque fwd: 560 Nm
- Torque limited: No
- Air consumption at load: 19 l/s
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.75 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 113 dB(A)
- Sound Pressure: 102 dB(A)
- Uncertainty vibration-K: 4.1 m/s²
- Vibration (m/s²): 15.1
- Vibration: 15.1 m/s²
- Free Speed: 6200 rpm
- Length (L): 500 mm
- Weight: 9.5 kg
- Blow per minute: 900
- Body: Aluminium
- Clutch housing: Aluminium
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mechanism: Pinless rocking dog
- Main Material type: Aluminium
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Side handle: Yes
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
