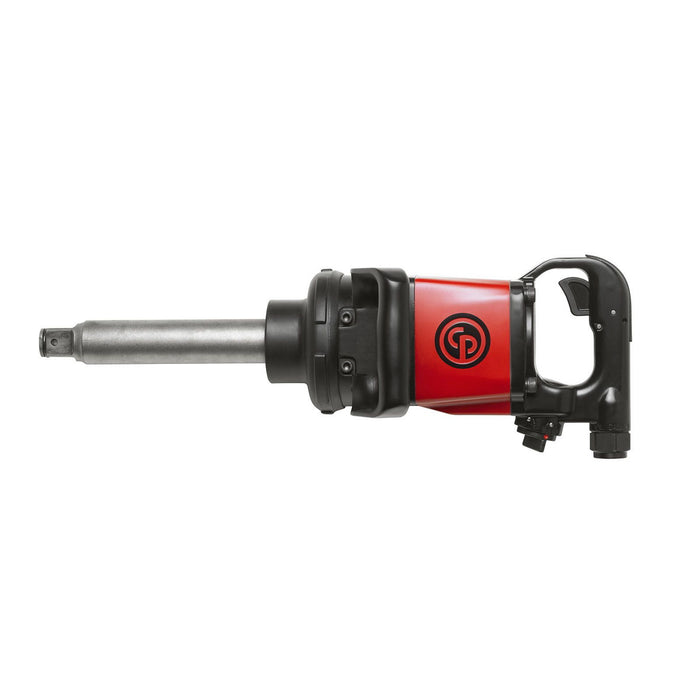

Chicago Pneumatic CP7782TL-6, 1" Torque-Limited Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941077827
The Chicago Pneumatic CP7782TL-6 delivers the kind of repeatable, controlled torque output that assembly professionals demand when over-tightening simply isn't an option. Engineered with a torque-limited mechanism, this one-inch drive air impact wrench holds a forward working torque range of 400 to 440 Nm, making it an outstanding choice for applications where consistent fastener tension is critical to quality and safety. The reverse torque reaches an impressive 2600 Nm, giving operators the raw removal power they need without compromising the precision built into the forward drive. As a professional-grade cp impact wrench, the CP7782TL-6 is built to perform in demanding industrial environments where standard tools fall short. The non-shut-off torque control system provides a straightforward, reliable method of torque management without the complexity of additional shut-off mechanisms, keeping maintenance requirements low and uptime high. Its robust one-inch drive coupling handles heavy-duty fasteners with confidence, and the tool's durable construction is engineered to withstand the rigours of continuous production use. This chicago pneumatic impact wrench suits assembly lines, truck and heavy equipment maintenance bays, and structural steel applications where hitting a defined torque window on every single fastener is non-negotiable. For any operation running bolted joints that require traceable, repeatable torque accuracy, this air impact wrench delivers the control and durability to get the job done right, every time.Product Feature: Torque limited in forward (370 ft.lb/500 Nm) to limit the risk of over tightening, max torque in reverse (1,920 ft.lbs/2,600 Nm) Metal housing and pinless closed reinforced rocking dog impact mechanism for high durability Regulator integrated in forward/reverse, knob with 3 positions, power setting in both directions for improved comfort in use Integrated protective cover on the clutch housing protects both applications & tool Low vibration for improved operational comfort About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 440 Nm
- Max torque reverse: 2600 Nm
- Min working torque fwd: 400 Nm
- Torque Control System: Non shut-off-stall
- Torque limited: Yes
- Air consumption at load: 19 l/s
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 111 dB(A)
- Sound Pressure: 100 dB(A)
- Uncertainty vibration-K: 1.8 m/s²
- Vibration (m/s²): 7.8
- Vibration: 7.8 m/s²
- Free Speed: 5200 rpm
- Height (H): 171.8 mm
- Length (L): 510.8 mm
- Width (W): 210.6 mm
- Power weight ratio: 250 Nm/kg
- Weight: 11.6 kg
- Blow per minute: 500
- Body: Aluminium
- Clutch housing: Aluminium
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mechanism: Pinless rocking dog
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Dual
- Side handle: Yes
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
