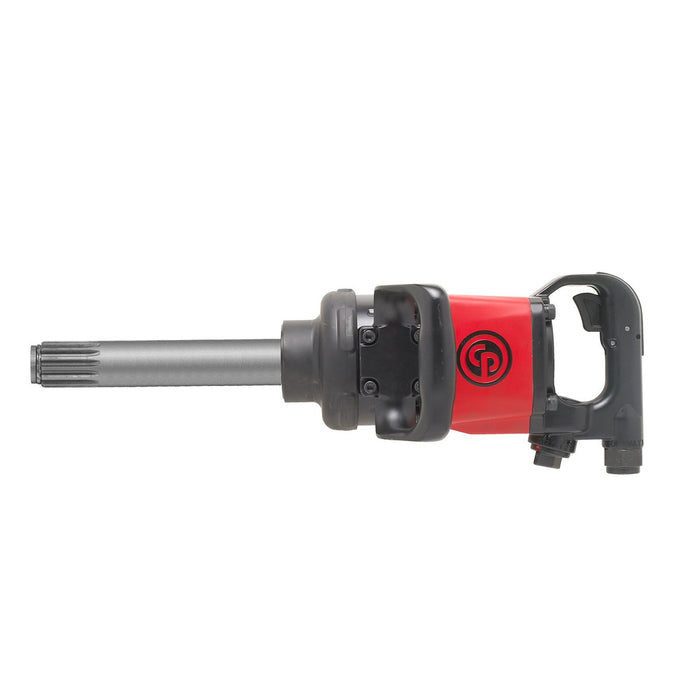

Chicago Pneumatic CP7782-SP6, 1" 5-Spline Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941077821
The Chicago Pneumatic CP7782-SP6 delivers the kind of raw, reliable power that serious workshops demand, combining an impressive 2000 Nm maximum forward working torque with a commanding 2600 Nm in reverse to tackle even the most stubborn fasteners with confidence. Designed for professionals who refuse to compromise, this heavy-duty cp impact wrench is built to perform under sustained pressure across a wide range of industrial and automotive applications. Powered by a 5-spline drive configuration and spinning at up to 5200 RPM free speed, the CP7782-SP6 offers exceptional fastening and loosening performance that puts it firmly among the best air impact wrenches available in its class. The substantial torque range - with a minimum working torque of 500 Nm forward - gives operators genuine versatility across varying task demands, from controlled assembly work to high-torque breakdown jobs. Without torque limiting mechanisms getting in the way, this chicago pneumatic impact wrench delivers straightforward, full-force output every time the trigger is pulled. Engineered for durability and long service life in demanding environments, the tool's robust construction makes it equally at home in heavy vehicle maintenance, construction equipment servicing, and industrial manufacturing lines. Whether a workshop is tackling truck and bus wheel removal, agricultural machinery repairs, or large-scale structural fastening, the air impact wrench performance of the CP7782-SP6 consistently meets professional expectations where output, reliability, and precision all genuinely matter.Product Feature: 1,920 ft.lbs ( 2,600 Nm) of max torque in reverse position for high productivity Metal housing and pinless closed reinforced rocking dog impact mechanism for high durability Power control regulators at the rear of the unit with 3 reverse and 3 forward positions Integrated protective cover on the clutch housing protects both applications & tool Low vibration for improved comfort About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 2000 Nm
- Max torque reverse: 2600 Nm
- Min working torque fwd: 500 Nm
- Torque limited: No
- Air consumption at load: 19 l/s
- Air inlet thread size (in): 1/2
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 111 dB(A)
- Sound Pressure: 100 dB(A)
- Uncertainty vibration-K: 1.8 m/s²
- Vibration (m/s²): 7.8
- Vibration: 7.8 m/s²
- Free Speed: 5200 rpm
- Length (L): 570 mm
- Power weight ratio: 250 Nm/kg
- Weight: 11.6 kg
- Blow per minute: 500
- Body: Aluminium
- Clutch housing: Aluminium
- Clutch lubrication type: Grease
- Handle type: D-handle
- Impact mechanism: Pinless rocking dog
- Main Material type: Aluminium
- Output drive size (in): 5 Spline
- Output drive type: 5 Spline
- Output retainer type: Friction ring
- Side handle: Yes
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
