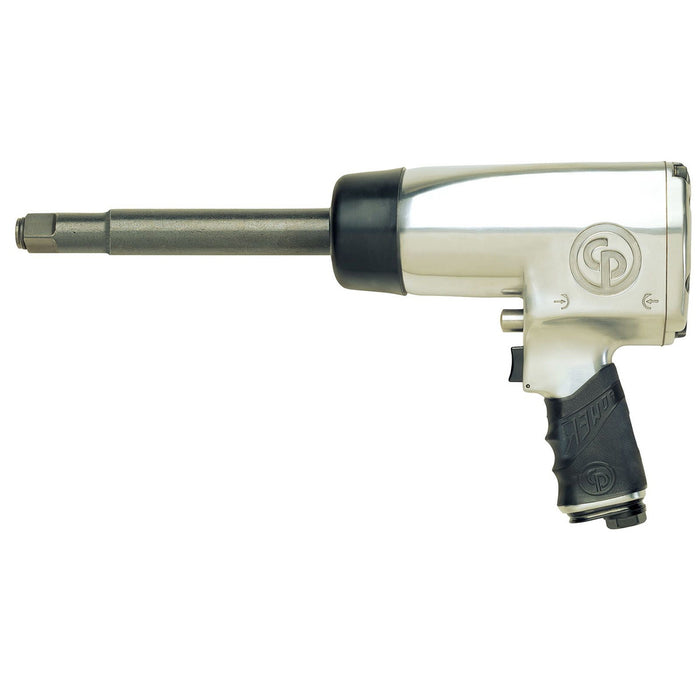

Chicago Pneumatic CP772H-6, 3/4" Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: T024757
The Chicago Pneumatic CP772H-6 delivers the raw torque and dependable performance that serious workshop professionals and heavy-duty technicians demand from a three-quarter inch air impact wrench. With a maximum forward working torque of 949 Nm and an impressive 1350 Nm in reverse, this chicago pneumatic impact wrench tears through stubborn fasteners with confidence, while a minimum forward torque of 203 Nm gives operators meaningful control across a broad range of applications. The 4200 RPM free speed ensures rapid fastener removal and installation, significantly reducing downtime on demanding jobs. Built to the exacting standards that have made Chicago Pneumatic a trusted name in pneumatic tooling, the CP772H-6 combines robust internal engineering with a design intended for sustained professional use. As a cp impact wrench engineered for three-quarter inch drive applications, it fills the critical gap between lighter half-inch tools and heavier one-inch duty wrenches, offering an ideal balance of power and manoeuvrability. The air inlet configuration supports efficient airflow management, helping maintain consistent output even under continuous operation. This air impact wrench is the go-to choice for commercial vehicle workshops, tyre fitting centres, agricultural machinery servicing, and industrial maintenance operations where high-torque fastener work on wheels, suspension components, and heavy equipment is a daily requirement.Product Feature: Metal motor housing with pin clutch mechanism in oil bath (dyna-pact) for high durability and smooth operations Comfortable tool with rubber grip and reverse button with 4 positive power settings About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 949 Nm
- Max torque reverse: 1350 Nm
- Min working torque fwd: 203 Nm
- Torque limited: No
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 107 dB(A)
- Sound Pressure: 96 dB(A)
- Uncertainty vibration-K: 2 m/s²
- Vibration (m/s²): 5.8
- Free Speed: 4200 rpm
- Length (L): 394 mm
- Power weight ratio: 250 Nm/kg
- Weight: 5.3 kg
- Blow per minute: 900
- Body: Aluminium
- Clutch housing: Aluminium
- Clutch lubrication type: Oil bath
- Handle type: Pistol
- Impact mechanism: Pin clutch
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Friction ring
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
