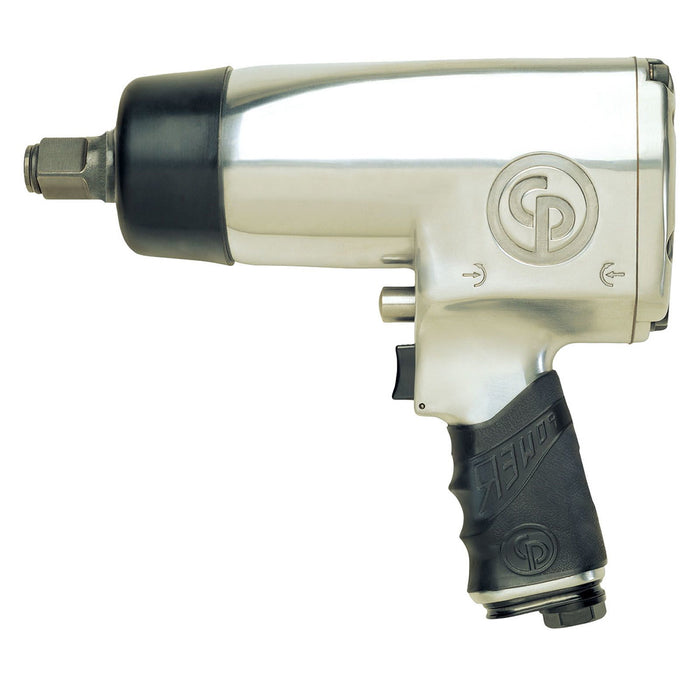

Chicago Pneumatic CP772H, 3/4" Air Impact Wrench
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: T024598
The CP772 Series is the Classic 3/4 impact wrench, designed with a pin clutch mechanism in oil bath and a metal motor housing for high durability. Product Feature: Metal motor housing with pin clutch mechanism in oil bath (dyna-pact) for high durability and smooth operations Comfortable tool with rubber grip and reverse button with 4 positive power settings About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max working torque fwd: 949 Nm
- Max torque reverse: 1350 Nm
- Min working torque fwd: 203 Nm
- Torque limited: No
- Air inlet thread size (in): 3/8
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.5 in
- Min hose diam (5 m hose length): 13 mm
- Sound Power: 107 dB(A)
- Sound Pressure: 96 dB(A)
- Uncertainty vibration-K: 2 m/s²
- Vibration (m/s²): 5.8
- Free Speed: 4200 rpm
- Length (L): 245 mm
- Power weight ratio: 280 Nm/kg
- Weight: 4.76 kg
- Blow per minute: 900
- Body: Aluminium
- Clutch housing: Aluminium
- Clutch lubrication type: Oil bath
- Handle type: Pistol
- Impact mechanism: Pin clutch
- Output drive size (in): 3/4
- Output drive type: Sq
- Output retainer type: Friction ring
- Starting system: Trigger
-
New Grade - 24 Months Warranty from purchase is available on this product.
