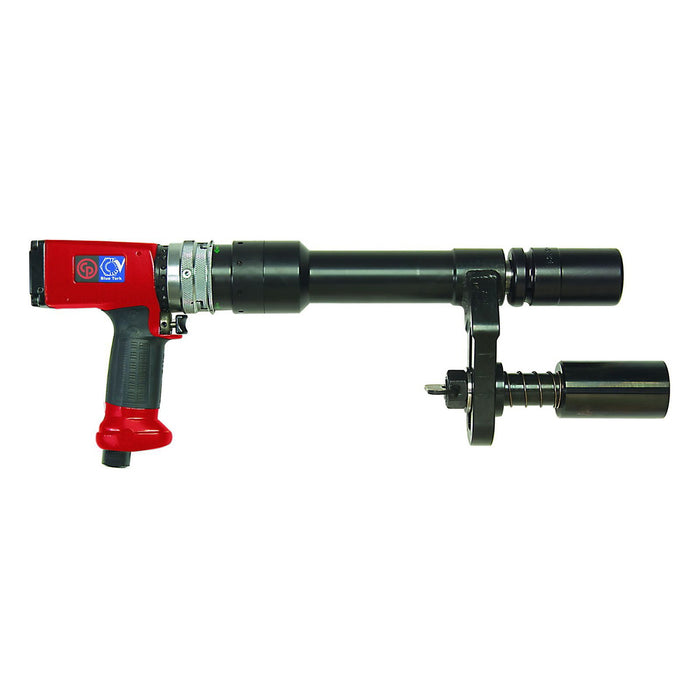

Chicago Pneumatic CP7600xC-R, 1" Pneumatic Nutrunner
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941076021
Delivering exceptional torque precision where it matters most, the Chicago Pneumatic CP7600xC-R redefines professional-grade fastening with a maximum output of 900 Nm in both forward and reverse, making it one of the most capable cp impact wrenches in its class. Engineered with a sophisticated shut-off torque control system, this 1-inch drive pneumatic nutrunner automatically disengages air supply once the target torque is reached, ensuring consistent, repeatable results without the risk of over-tightening - a critical advantage in high-stakes assembly environments. The bar cup design contributes to excellent ergonomics and operator comfort during extended production runs, while the minimum forward torque of 450 Nm gives technicians meaningful control across a broad fastening range. Paired with the reliability Chicago Pneumatic has built its reputation on, this air impact wrench is purpose-built for demanding industrial applications where accuracy and durability are non-negotiable. Unlike a stubby impact wrench intended for tight-access automotive work, the CP7600xC-R is optimised for structured manufacturing and assembly lines - think heavy equipment production, structural steelwork, and large-scale vehicle manufacturing - where precise torque management drives both quality and safety. Maintenance teams servicing industrial machinery and commercial vehicle fleets will also find its controlled shut-off performance invaluable for critical joint integrity. For professionals who demand precision at power, this chicago pneumatic impact wrench is an outstanding investment in process reliability.Product Feature: Air Shut-off torque control at preset torque Selection of up to 4 calibrated tightening torques with high accuracy Short version with CUPS reaction bar optional Low noise level (
-
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 450 Nm
- Torque Control System: Shut-off-pneumatic valve
- Adjustment: Key
- Handle type: Pistol
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: Standard Cup included
- Reversible: Yes
- Spline type: 0
- Starting system: Trigger
- Free Speed: 100 rpm
- Air consumption at free speed: 19 l/s
- Length (L): 460 mm
- Weight: 8.8 kg
- Sound Power: 90 dB(A)
- Sound Pressure: 79 dB(A)
- Vibration (m/s²): <2.5
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSPP
- Max dynamic air working pressure: 7 bar
- Min hose diam (5 m hose length): 13 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
