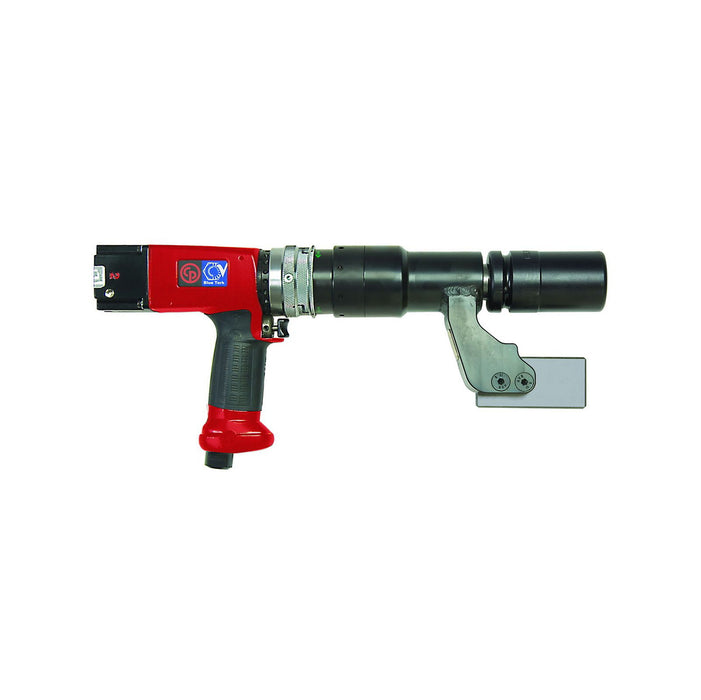

Chicago Pneumatic CP7600xB-R4P, 1" Pneumatic Nutrunner
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941076015
Delivering exceptional torque control and precision fastening performance, the Chicago Pneumatic CP7600xB-R4P is a professional-grade 1'' drive pneumatic nutrunner engineered for demanding industrial assembly applications. This cp impact wrench combines robust construction with an advanced shut-off torque control system, ensuring repeatable accuracy across every fastening cycle and eliminating the risk of over-tightening critical joints. The CP7600xB-R4P produces a maximum forward and reverse torque of 900 Nm, while its minimum forward torque starts at 450 Nm, giving operators a wide and precisely controllable working range suited to complex multi-torque assembly lines. The integrated shut-off-p torque control system disengages the drive automatically once the target torque value is reached, dramatically reducing operator fatigue and improving consistency across high-volume production environments. As a chicago pneumatic impact wrench, the CP7600xB-R4P benefits from the brand's decades of engineering expertise, combining a durable bar blade mechanism with an ergonomic form factor that keeps operators comfortable during extended shifts. The 1'' square drive interfaces seamlessly with a full range of industrial sockets, making this air impact wrench equally capable on large structural fasteners, heavy vehicle assemblies, and mining equipment maintenance. Whether tightening wheel hubs on commercial vehicles, assembling large agricultural machinery, or securing structural steelwork, this tool delivers the torque, control, and reliability that professional technicians demand.Product Feature: Air Shut-off torque control at preset torque Selection of up to 4 calibrated tightening torques with high accuracy Short version with CUPS reaction bar optional Low noise level (
-
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 450 Nm
- Torque Control System: Shut-off-pneumatic valve
- Adjustment: Key
- Handle type: Pistol
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: Blade included
- Reversible: Yes
- Spline type: 0
- Starting system: Trigger
- Free Speed: 100 rpm
- Air consumption at free speed: 19 l/s
- Length (L): 380 mm
- Weight: 6.9 kg
- Sound Power: 90 dB(A)
- Sound Pressure: 79 dB(A)
- Vibration (m/s²): <2.5
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSPP
- Max dynamic air working pressure: 7 bar
- Min hose diam (5 m hose length): 13 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
