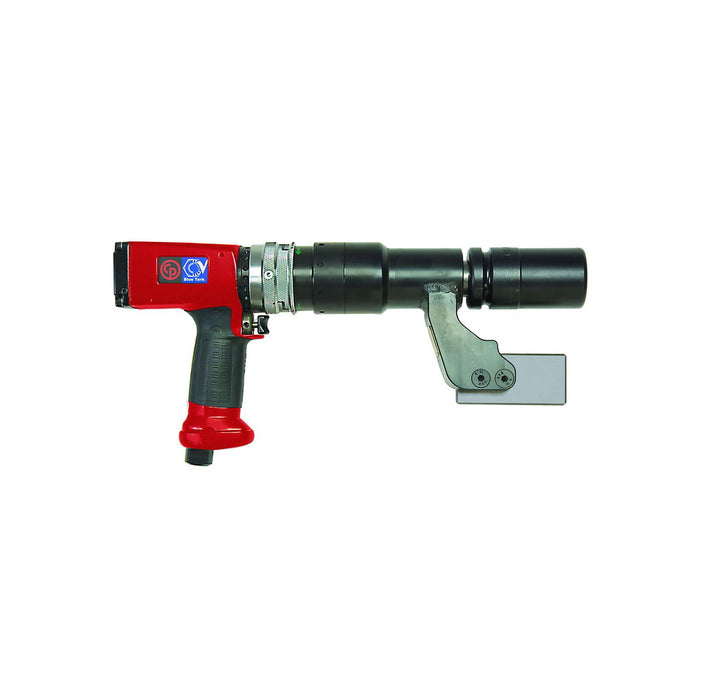

Chicago Pneumatic CP7600xB-R, 1" Pneumatic Nutrunner
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941076011
The Chicago Pneumatic CP7600XB-R delivers the precision and raw stopping power that serious assembly and disassembly professionals demand, combining a reliable shut-off clutch system with an impressive 900 Nm of maximum torque in both forward and reverse directions. Engineered as a 1-inch drive pneumatic nutrunner, this cp impact wrench is purpose-built for controlled, repeatable fastening where over-torquing simply isn't an option. The bar blade design and shut-off-p torque control system work in tandem to disengage the drive automatically once the target torque is reached, protecting critical joints and reducing operator fatigue across long production runs. With a minimum forward torque threshold of 450 Nm and a maximum ceiling of 900 Nm, this chicago pneumatic impact wrench offers a broad working range that suits a wide variety of high-torque applications without sacrificing consistency. The ergonomic form factor keeps the tool balanced and manageable even during extended use, while the pneumatic drive delivers the smooth, sustained power output that air impact wrench users rely on in demanding industrial environments. Ideal for heavy vehicle assembly, structural steelwork, agricultural machinery maintenance, and industrial production lines, the CP7600XB-R is the trusted choice when torque accuracy and durability must go hand in hand on every single fastener.Product Feature: Air Shut-off torque control at preset torque Selection of up to 4 calibrated tightening torques with high accuracy Short version with CUPS reaction bar optional Low noise level (
-
- Max torque in forward: 900 Nm
- Max torque reverse: 900 Nm
- Min torque in forward: 450 Nm
- Torque Control System: Shut-off-pneumatic valve
- Adjustment: Key
- Handle type: Pistol
- Output drive size (in): 1
- Output drive type: Sq
- Output retainer type: Hole
- Reaction bar type: Blade included
- Reversible: Yes
- Spline type: 0
- Starting system: Trigger
- Free Speed: 100 rpm
- Air consumption at free speed: 19 l/s
- Length (L): 345 mm
- Weight: 6.6 kg
- Sound Power: 90 dB(A)
- Sound Pressure: 79 dB(A)
- Vibration (m/s²): <2.5
- Air inlet thread size (in): 3/8
- Air inlet thread type: BSPP
- Max dynamic air working pressure: 7 bar
- Min hose diam (5 m hose length): 13 mm
-
New Grade - 24 Months Warranty from purchase is available on this product.
