Chicago Pneumatic CP7408, 1/4"(6mm) Straight Air Die Grinder
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941074080

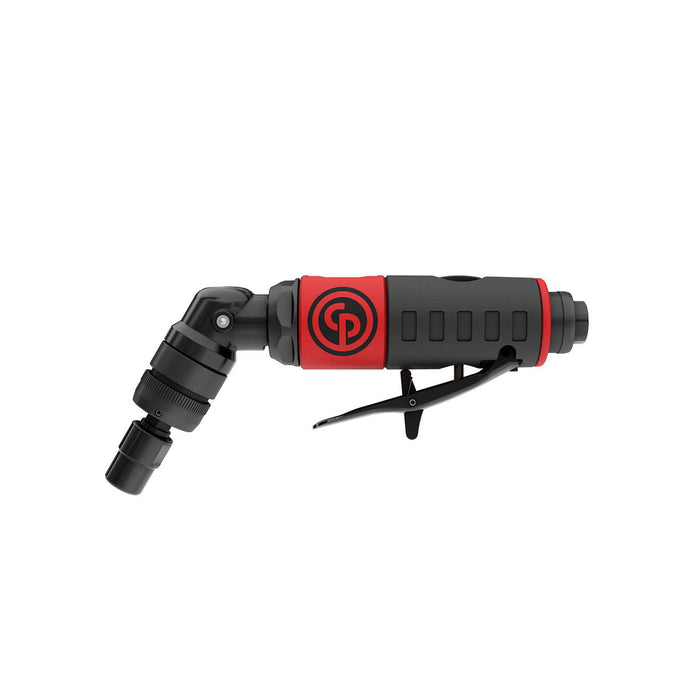

The Chicago Pneumatic CP7408 angle die grinder delivers professional-grade performance in a remarkably compact and lightweight package, making it one of the most versatile pneumatic die grinders available for precision metalworking applications. Weighing just 0.62 kg and measuring 195 mm in length, this CP die grinder is engineered for operators who demand extended comfort during repetitive grinding, deburring, and finishing tasks without sacrificing power or control. Powered by compressed air, the CP7408 generates an impressive 250 W of maximum output while spinning at 23,000 RPM free speed, giving users the rotational force needed to tackle hardened materials, weld seams, and tight contours with confidence. The 1/4-inch (6 mm) collet accepts a wide range of mounted points, burrs, and abrasive accessories, while the ergonomic angle head design provides exceptional access to recessed areas and confined workspaces that straight-body tools simply cannot reach. Air consumption at free speed registers at 9.4 l/s, reflecting a well-balanced efficiency rating for a pneumatic die grinder of this calibre. This air die grinder is the ideal choice for automotive technicians, fabrication shops, aerospace maintenance crews, and general engineering environments where precision surface preparation and material removal are daily requirements. Its combination of low weight, high speed, and angled geometry makes it a go-to tool for professionals who need reliable performance in challenging, space-restricted conditions.Product Feature: Burrs easily changeable allowing the operator to use only one wrench thanks to the new spindle lock system. Good surface grip avoiding the tool to slip once in operator's hand thanks to the handle's material (TPR) and ergonomics. High application coverage thanks to the multitude of heads (short & long straight, 120°, 90°) Less heat transfer between the motor and the sleeve thanks to the composite housing About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Length (L): 195 mm
- Weight: 0.62 kg
- Max power: 250 W
- Free Speed: 23000 rpm
- Air consumption at free speed (Normo): 9.4 1/sNl
- Air consumption at free speed: 1.3 l/s
- Air consumption at load: 1 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Sound Power: 89.6 dB(A)
- Sound Pressure: 78.6 dB(A)
- Uncertainty vibration-K: 0.9 m/s²
- Vibration: 4.3 m/s²
- Angle Type: Straight
- Collet max capacity: 1/4 (6.35mm)
- Exhaust: Rear
- Main Material type: Aluminium, Composite over-sleeve
- Rotative inlet: No
- Spindle lock: Yes
- Starting system: Safety lever
-
New Grade - 24 Months Warranty from purchase is available on this product.
