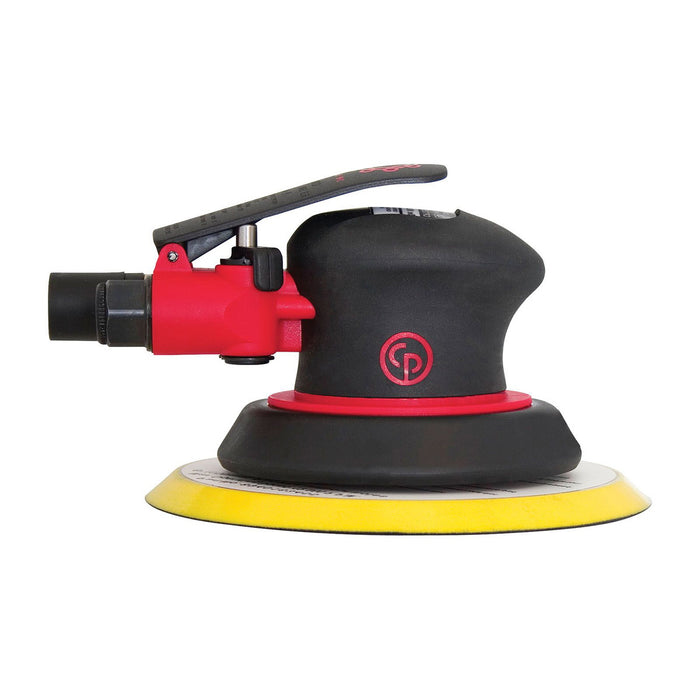

Chicago Pneumatic CP7255, 6"(150mm) Random Orbital Air Sander
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941072551
The Chicago Pneumatic CP7255 pneumatic orbital sander delivers the kind of controlled, consistent finish that automotive bodywork and industrial surface preparation demand. Engineered around a 6-inch (150 mm) pad and running at a free speed of 12,000 RPM, this air orbital sander generates 210 W of power to cut through paint, primer, and filler with impressive efficiency while leaving behind a smooth, swirl-minimised surface ready for the next stage of refinishing. Built for continuous use in busy workshops, the CP7255 air sander draws 8 l/s air consumption at free speed, making it well suited to shops with reliable compressor capacity. Its random orbital action reduces the risk of surface swirl marks that straight-line sanders often leave behind, giving operators finer control over their finishing passes. The 92 dB(A) sound power rating is typical for a tool in this class, and the straightforward design keeps maintenance demands low, reducing downtime on the shop floor. Lightweight and well-balanced, the Chicago Pneumatic da sander air handles extended sessions without fatigue, whether operators are flatting body panels, prepping fibreglass, or knocking back high-build primer across large surface areas. Replacement pads, backing plates, and service parts are readily available through MachineRefurb.com, supporting long service life and consistent performance. The CP7255 is the natural choice for automotive refinishers, coachbuilders, and fabricators who need a dependable jitterbug sander capable of producing professional results shift after shift.Product Feature: Operator comfort with ergonomic palm shape in soft grip for perfect control Productivity increased with low vibration level and low noise level Powerful motor 0.3 hp (210 W) for vertical and horizontal applications 3"(75 mm) / 6"(150 mm) random orbital with palm sander, 3/16" (5mm) orbit for surface preparation from body filler to paint primer About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Max power: 210 W
- Free Speed: 12000 rpm
- Air consumption at free speed: 8 l/s
- Overspeed shut-off: No
- Sound Power: 92 dB(A)
- Sound Pressure: 81 dB(A)
- Uncertainty vibration-K: 2.3 m/s²
- Vibration: 8.2 m/s²
- Air consumption at load: 7.6 l/s
- Air inlet thread size (in): 1/4
- Air inlet thread type: NPT
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Abrasive Pad Attachment: PSA
- Auto balancer: No
- Circular Abrasive Pad Size (in): 6
- Circular Abrasive Pad Size (mm): 150
- Exhaust: Rear
- Main Material type: Aluminium, Composite over-sleeve
- Orbit Size (in): 3/16
- Orbit Size (mm): 5
- Orbit type: Random
- Output Spindle Thread: 5/8-24 UNF
- Pad holes number: 0
- Pad type: Foam
- Rotative inlet: No
- Starting system: Lever
- Vacuum: Non vacuum
- Height (H): 105 mm
- Length (L): 185 mm
- Width (W): 150 mm
- Weight: 0.79 kg
-
New Grade - 24 Months Warranty from purchase is available on this product.
