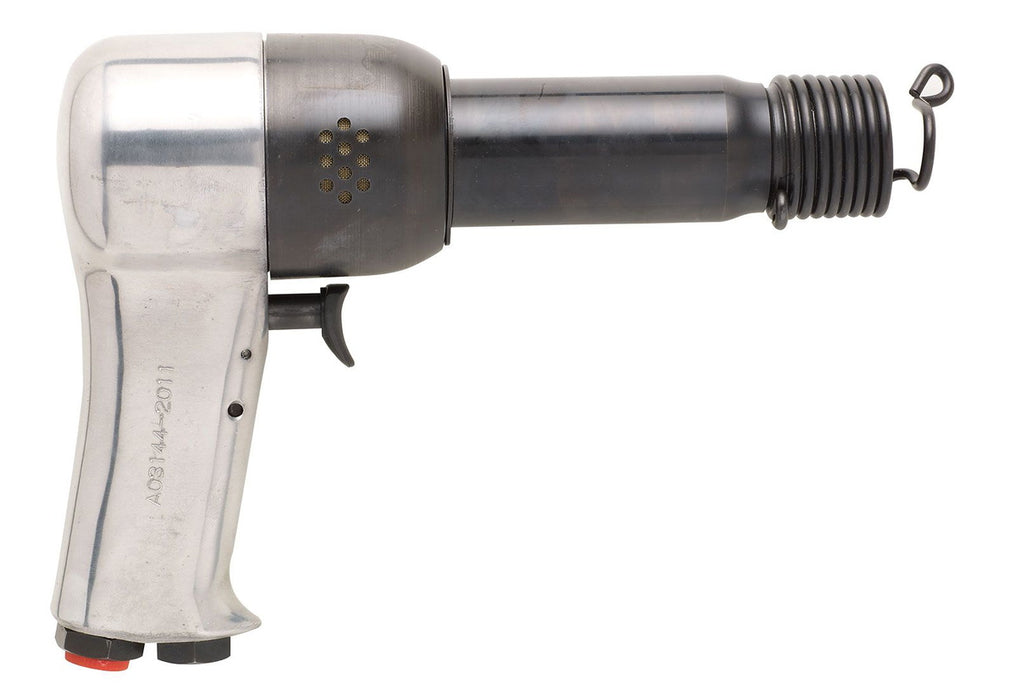

Chicago Pneumatic CP717, 0.498"(12.7mm) Air Hammer
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: T020120
The Chicago Pneumatic CP717 air hammer delivers professional-grade performance in a compact, well-balanced package that keeps technicians productive through the most demanding applications. Weighing just 2.15 kg and measuring 190 mm in length, this chicago pneumatic air hammer is engineered for comfort and control without sacrificing raw striking power. The CP717 features a 19 mm bore diameter and an impressive 68 mm stroke, generating the consistent, heavy-hitting blows that separate a capable pneumatic hammer from the competition. With an air consumption of just 5.9 l/s at load, the cp717 air hammer operates efficiently on standard workshop compressor setups, reducing energy costs without compromising output. The 0.498'' round shank retainer accepts a wide range of standard air chisel tooling, making this pneumatic chisel genuinely versatile across multiple tasks and trade environments. Built to Chicago Pneumatic's exacting quality standards, the chicago pneumatic cp717 air hammer combines a robust internal mechanism with an ergonomic design that minimises operator fatigue during extended use. The cp air hammer construction uses durable materials selected for long service life, ensuring a strong return on investment for trade professionals and workshop operators alike. This air chisel hammer is ideally suited for automotive bodywork, panel removal, exhaust and suspension work, scaling, chipping, and general metal fabrication where reliable percussive power and precise tool control are essential to getting the job done right, first time.Product Feature: Heavy duty pistol grip hammer Standard .498" round shank Positive action trigger for a better precision About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Bore diameter: 19 mm
- Length (L): 190 mm
- Stroke: 68 mm
- Weight: 2.15 kg
- Air consumption at load: 5.9 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Blow per minute: 1800
- Chisel shank: Round
- Chisel shank diameter (in): 0.498
- Chisel shank diameter (mm): 12.7
- Energy: 7.3 J
- Main Material type: Aluminium
- Max rivet size (in): 1/4
- Max rivet size (mm): 6.4
- Max rivet size steel (in): 3/16
- Max rivet size steel (mm): 4.8
- Starting system: Trigger
- Sound Power: 106 dB(A)
- Sound Pressure: 95 dB(A)
- Uncertainty vibration-K: 2.9 m/s²
- Vibration: 8.6 m/s²
-
New Grade - 24 Months Warranty from purchase is available on this product.
