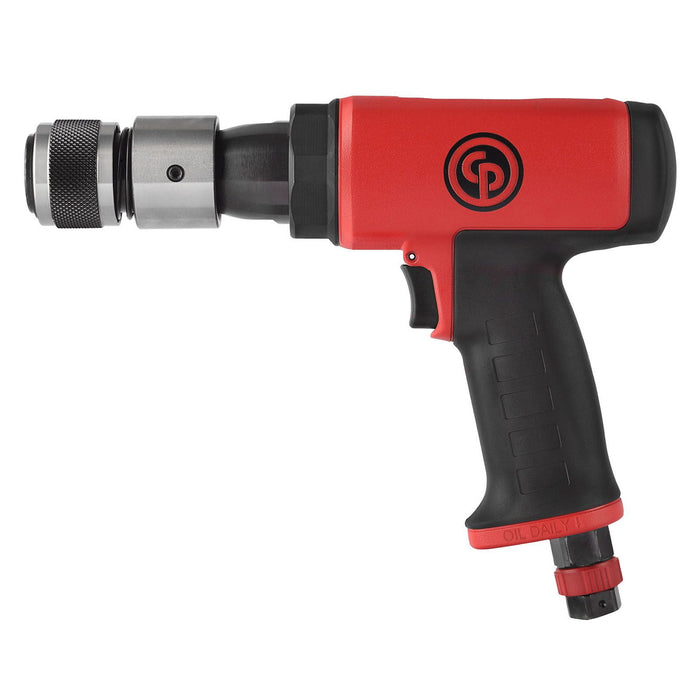

Chicago Pneumatic CP7160, 0.401"(10.2mm) Air Hammer
- Product Description
- Technical Specification
- Warranty Details
-
Product Number: 8941071600
Delivering powerful impact performance with significantly reduced operator fatigue, the Chicago Pneumatic CP7160 is a precision-engineered low vibration short hammer designed for professionals who demand reliability across demanding applications. Built with a 0.401'' (10.2 mm) round shank interface, this chicago pneumatic air hammer offers an exceptional balance between compact dimensions and raw striking capability, making it an ideal addition to any serious workshop or mobile service operation. The CP7160 features a 19 mm bore diameter paired with a 67 mm stroke, generating consistent, controlled impact energy through every work cycle. Its compact form factor - measuring just 191 mm in length and 194 mm in height with a width of 58 mm - allows access to confined spaces where larger pneumatic hammers simply cannot reach. Weighing in at a manageable 1.88 kg, this air hammer reduces wrist and arm strain during extended use without sacrificing performance output. The low vibration design is a standout characteristic of this cp air hammer, actively minimising harmful hand-arm vibration transmission to help operators comply with occupational health standards and comfortably sustain longer working sessions. As a pneumatic chisel platform, the CP7160 accepts a broad range of standard 0.401'' tooling, including chisels, punches, and scaling attachments. Whether tackling automotive bodywork, exhaust system removal, gasket breaking, or general fabrication tasks, this air chisel hammer delivers the controlled aggression and ergonomic confidence that professional technicians and tradespeople rely on daily.Product Feature: Low vibrations thanks to an air cushion present in the tool reducing vibrations to 4.37 m/s² Rubber grip at the back of the tool & Well balanced tool for comfortable everyday use. Aluminium motor housing for high robustness Quick change chisel retainer (provided with the tool) About MachineRefurb: MachineRefurb is an e-commerce platform specialising in replacement parts, spares and consumables for construction, agriculture and industrial machinery, serving customers across Ireland, the United Kingdom and Europe. We offer an extensive catalogue of over 200,000 products to keep your machines running. Standard delivery: 1-7 working days across Ireland, the UK and Europe.
-
- Bore diameter: 19 mm
- Height (H): 194 mm
- Length (L): 191 mm
- Width (W): 58 mm
- Stroke: 67 mm
- Weight: 1.88 kg
- Air consumption at load: 8.7 l/s
- Air inlet thread size (in): 1/4
- Max dynamic air working pressure: 6.3 bar
- Min hose diam (16 ft hose length): 0.38 in
- Min hose diam (5 m hose length): 10 mm
- Blow per minute: 3500
- Chisel shank: Round
- Chisel shank diameter (in): 0.401
- Chisel shank diameter (mm): 10.2
- Energy: 8 J
- Max rivet size (in): 1/4
- Max rivet size (mm): 6.4
- Max rivet size steel (in): 3/16
- Max rivet size steel (mm): 4.8
- Starting system: Trigger
- Sound Power: 109.4 dB(A)
- Sound Pressure: 98.4 dB(A)
- Uncertainty vibration-K: 1.4 m/s²
- Vibration: 4.4 m/s²
-
New Grade - 24 Months Warranty from purchase is available on this product.
